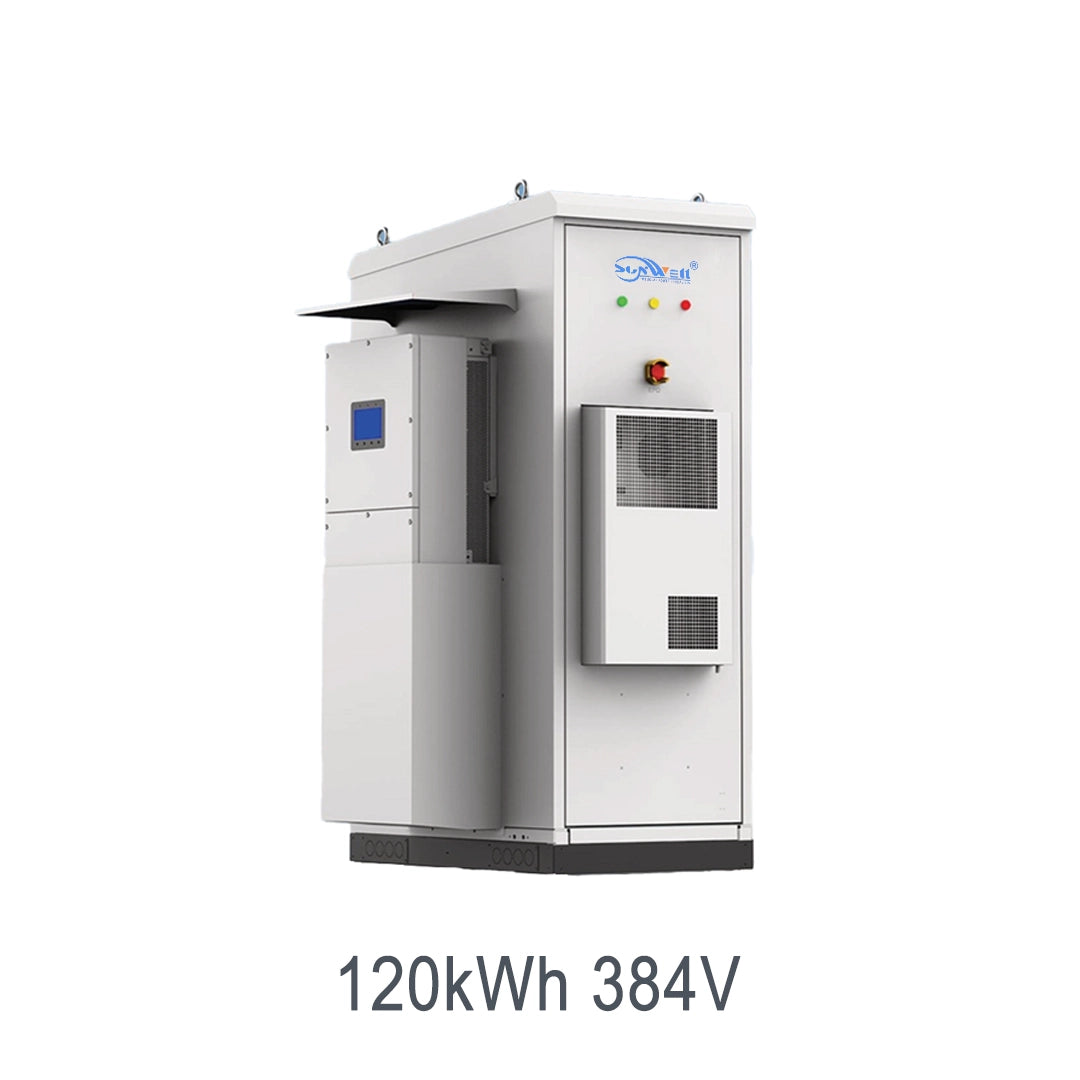

120kWh 384V Air-Cooled C&I ESS Cabinet

120kWh 384V Air-Cooled C&I ESS Cabinet

Get a Quote Contact Us
Model

Designed for factories, shops and micro-grids, the 120kWh 384V Air-Cooled C&I ESS Cabinet packs LiFePO4 storage into a commercial enclosure. It runs on a 384V system and expands from one unit into a larger storage bank. Owners use it to ride through outages and shift solar or grid energy into the evening peak.

View full details
120kWh 384V Air-Cooled C&I ESS Cabinet — Technical Specifications
MODELSW-eBock-120F2
Battery parameters
Battery TypeLFP
Number Of Battery Packs6
Rated Voltage384V
Voltage Range300~438V
Rated Energy120.5kWh
Max.Continuous Charging And Discharging Current200A
Depth Of Discharge90%
Cycle Life6000 times
PV parameters
Max. PV Input Power120kW
Rated Input Voltage600Vdc
Max.Input Voltage1000
MPPT Voltage Range150~950VDC
PV Input Current42A*10
AC side parameters
AC Rated Output Power60kW
AC Max. Output Power60kVA
AC Rated Input/Output Current157.5A
Isolation TransformerTransformerless
Voltage3L/N/PE, 230/400Vac
Frequency50/60Hz
THDI≤3%
Power Factor0.8 leading to 0.8 lagging
System parameters
Product Dimension (W×D×H)750×1200×2095mm
Net Weightabout 1498
CommunicationCAN/RS485/WIFI/ETH
Design Life10 years+
ScalabilitySupport in parallel
ProtectionIP54
Cooling MethodAir cooling
Operating TemperatureCharging:0~50°C/Discharge:-20~50°C
Humidity10%~95%RH
Altitude<2000m

Features

  • High-capacity LiFePO4 storage supports commercial duty. The cabinet packs energy for factories, shops and micro-grids, sustaining daily charge and discharge.
  • Engineered thermal management sustains throughput. Active air cooling and monitoring maintain safe cell temperature under sustained commercial cycling.
  • Integrated EMS delivers peak shaving and backup. It coordinates PV, battery and load for demand-charge reduction, time-of-use arbitrage and seamless backup transfer.
  • Modular architecture scales with the project. Capacity grows by adding cabinets or racks without replacing core components as the site requirement evolves.
  • Remote monitoring enables proactive operation. Over CAN/RS485 operators track health, energy flow and alerts from a central platform.
  • Multi-level safety protects the installation. Cell, module and system protection safeguard the cabinet for continuous commercial use.

Applications

  • Small Commercial Backup: Powers lights, POS, and equipment during outages.
  • Solar Self-Consumption: Stores up to 120kW of PV input for evening use.
  • Peak Shaving: Discharges during peak tariffs to lower bills.
  • Retail & Branch Sites: Compact 750×2095×1200mm cabinet fits stores and offices.
  • Microgrid & Off-Grid: Buffers solar and generator power for weak-grid sites.
  • Outdoor Deployment: IP54 air-cooled cabinet installs outdoors in ventilated locations.

Energy Management & System Architecture

The SW-eBock-120F2 centers on a 120.5kWh LFP battery built from six packs at 384V, operating across a 300–438V window with 200A maximum continuous charge and discharge and 90% depth of discharge. The integrated PCS converts DC battery and PV energy into clean 230/400Vac three-phase AC, while the MPPT draws solar through a 150–950Vdc range with up to 120kW of PV input.

An energy-management layer coordinates power flow between PV, storage, and load, charging from solar or grid and serving connected loads as needed. Intelligent control, supported by CAN, RS485, WIFI, and ETH communication, lets operators monitor status and balance generation against consumption, keeping the air-cooled cabinet efficient through daily commercial cycles.

Grid, Backup & System Integration

The SW-eBock-120F2 connects to a 3L/N/PE 400V grid at 50/60Hz and supports grid-connected and off-grid operation, with integrated STS keeping essential loads powered during outages. Its transformerless design and THDi at or below 3% help it integrate cleanly with existing commercial electrical systems.

For savings, the cabinet enables peak shaving by discharging stored solar during high-tariff periods and supports solar self-consumption through its MPPT. Parallel expansion lets operators add cabinets to build a larger bank, and the integrated architecture can combine with PV or generators as the site's energy needs grow.

Warranty

LiFePO4 batteries for 5 years, hybrid inverters for 2 years, and solar panels under the supplier policy of a 10-year product warranty plus 30-year linear power warranty. If you experience any quality issues within the applicable warranty period, please contact us and we will arrange a replacement or repair promptly.

Frequently Asked Questions

Will it connect to my 400V three-phase supply?

Yes. The SW-eBock-120F2 uses a transformerless 3L/N/PE 230/400Vac interface at 50/60Hz with THDi at or below 3%, so it integrates with most commercial grids without an isolation transformer.

How much can it store and output?

It stores 120.5kWh at 384V with 90% usable depth of discharge and delivers up to 200A continuous charge and discharge, plus 60kW of AC output and 120kW of PV input.

Can I expand it later?

Yes. The cabinet supports parallel expansion, so you can connect more units to increase stored energy and power as your site grows.

What keeps it safe and long-lived?

Multi-level safety with fuse protection and a two-stage fire-suppression system protects the cells, while air-cooled temperature control and a 6000-cycle design help deliver a long, stable service life.
