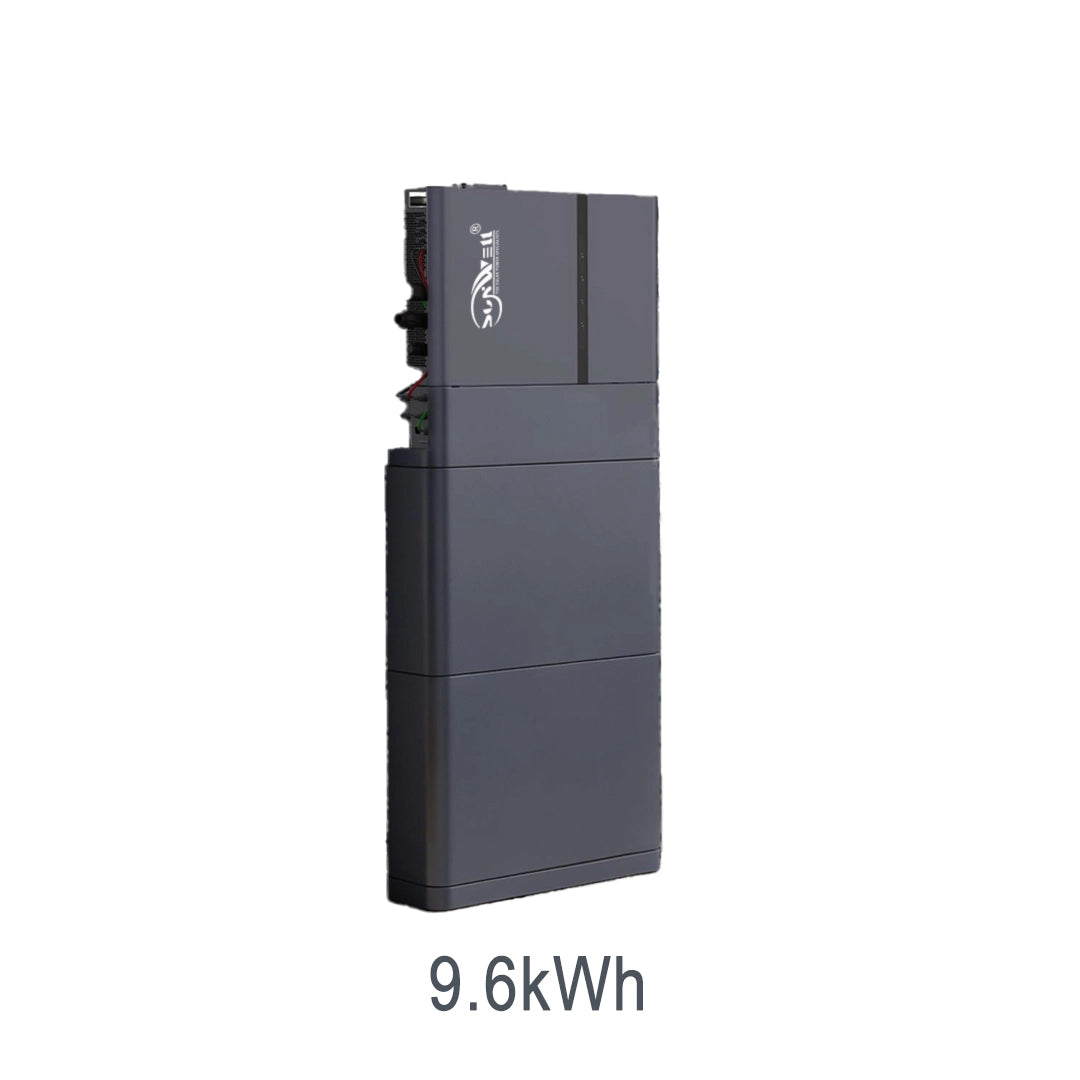

9.6kWh 3-Phase All-in-One ESS

9.6kWh 3-Phase All-in-One ESS

Get a Quote Contact Us
Model

The 9.6kWh 3-Phase All-in-One ESS is an all-in-one LiFePO4 system for homes and small businesses needing backup and solar self-use. The all-in-one design installs with basic cabling and no special tools, fitting tight equipment spaces. Its cells are rated for 6000 deep cycles, so the pack keeps delivering through years of daily charge and discharge.

View full details
9.6kWh 3-Phase All-in-One ESS — Technical Specifications
MODELSW-ESS10-10HVS1
PV Specifications
Max. PV Input Power15000W
Nominal DC Voltage/ Voc600Voc
Start-Up/ Min.Operation Voltage180Vdc
MPPT Voltage Range150-950Vdc
No. Of Mppts/ Strings2(1/2)
Max. PV Input/ Short Circuit Current48A (16A/32A)
Input/ Output(AC)
Max. AC Input Power From Grid20500VA
Rated AC Output Power10000W
Max. AC Output Apparent Power11000VA
Rated/ Max. AC Output Current15.2A/16.7A
Rated AC Voltage3/N/PE 220/380V, 230/400V, 240/415V
AC Voltage Range270-480V
Rated Grid Frequency50Hz/60Hz
Grid Frequency Range45-55Hz/55-65Hz
Harmonic (THD)< 3%
Power Factor At Rated Power> 0.99
Adjustable Power Factor0.8 leading ... 0.8 lagging
AC TypeThree phase
Battery Data
Rated Voltage192Vdc
Cell Combination60S1P*1
Rated Capacity50Ah
Energy Storage9.6kWh
Cycle Life25±2°C, 0.5C/0.5C, EOL70%≥6000
Charge Voltage219Vdc
Max. Charge/Discharge Current25A
Discharge Cut-Off Voltage168Vdc
Charge Cut-Off Voltage210Vdc
Environment
Charge Temperature0°C to 50°C@60±25% Relative Humidity
Discharge Temperature-20°C to 50°C@60±25% Relative Humidity
Storage Temperature-20°C to 50°C@60±25% Relative Humidity
Mechanical
IP ClassIP65
Material SystemLiFePO4
Case MaterialMetal
Case TypeAll in One Stack
Product Dimension(L×W×H)Inverter high-voltage box: 800×210×775mm / Battery box: 800×188×512mm (single)
Package Dimension(L×W×H)Inverter high-voltage box: 1115×300×880mm / Battery box: 920×310×735mm (single) (Packaging size Including accessories)
Net WeightInverter high-voltage box: 65kg / Battery box: 95kg / Accessory box: 9kg
Gross WeightInverter high-voltage box: 76kg (Including accessories) / Battery box: 105kg
Communication
ProtocolRS485/RS232/WLAN Optional
Certificates
SystemUN38.3, MSDS, EN, IEC, NRS, G99
CellUN38.3, MSDS, IEC62619, CE, UL1973, UL2054

Features

  • All-in-one architecture integrates battery, inverter and management. The 9.6kWh combines storage, a hybrid inverter and MPPT in one enclosure, cutting installer time and wiring.
  • Built-in inverter and MPPT handle solar, grid and backup. It harvests PV, powers loads and switches to battery backup within moments of an outage, with no manual action.
  • Intelligent EMS optimizes self-consumption and savings. The system routes power between solar, battery, grid and load in real time, enabling time-of-use scheduling and peak shaving.
  • Real-time monitoring keeps status visible. Through the unit display communication you can check state-of-charge, power flow and faults on site or remotely.
  • Safe LiFePO4 chemistry with multi-layer protection. Inherently stable cells plus system safeguards monitor over-voltage, over-current and temperature during daily operation.
  • Scalable storage expands as demand grows. Add battery modules or parallel units to increase capacity, protecting your initial investment as needs rise.

Applications

  • Three-Phase Home Solar Storage: Stores excess rooftop PV in the 9.6kWh pack for use across a whole three-phase residence.
  • Daytime PV Self-Consumption: The 15000W MPPT charges the battery from solar, cutting the home's grid draw during sunlight hours.
  • Evening Peak Shaving: Discharges after sunset to offset high-tariff evening demand on the three-phase supply.
  • Farm, Villa & Small Business: A 10kW three-phase output suits rural homes, small workshops, and light commercial sites.
  • New Build or Retrofit ESS: Plug-and-play stacking and ~10-minute commissioning fit both new installations and upgrades.
  • Scalable Storage Expansion: The optional battery stack lets owners add capacity as energy needs rise.

Energy Management & System Architecture

The SW-ESS10-10HVS1 is a 9.6kWh three-phase all-in-one ESS that combines a 10kW inverter, PV MPPT, and a 192Vdc LiFePO4 battery in a single stackable unit. Its twin MPPTs accept up to 15000W of PV at 150–950Vdc, converting solar directly into stored or usable AC power for the home.

Inside, the 60S1P×1 battery (50Ah) is managed by the system BMS with a 6000-cycle life at 70% SOH, while the inverter delivers 10000W (11000VA peak) at 220/380V–240/415V, 50/60Hz, with THDi below 3% and a power factor above 0.99. RS485/RS232 and optional WLAN feed status to energy-management software for coordinated charge, discharge, and load control.

Grid, Backup & System Integration

Grid-connected by design, the unit maximizes solar self-consumption and peak shaving: excess PV charges the battery during the day and discharges in the evening to cut grid draw, with an adjustable power factor from 0.8 leading to 0.8 lagging for grid support. The 10-minute plug-and-play commissioning and stackable form fit residential three-phase installations.

Capacity grows through the optional battery stack—the HVS1 starts at one 9.6kWh module while the HVS2 ships with two 9.6kWh modules for 19.2kWh—so homeowners scale storage as demand rises. System and cell certifications (UN38.3, MSDS, EN, IEC, NRS, G99, IEC62619, CE, UL1973, UL2054) and IP65 protection support safe, code-compliant integration.

Warranty

LiFePO4 batteries for 5 years, hybrid inverters for 2 years, and solar panels under the supplier policy of a 10-year product warranty plus 30-year linear power warranty. If you experience any quality issues within the applicable warranty period, please contact us and we will arrange a replacement or repair promptly.

Frequently Asked Questions

Will it work with my three-phase home and PV?

Yes. It outputs 10000W across 220/380V–240/415V at 50/60Hz, and twin MPPTs accept up to 15000W PV at 150–950Vdc, fitting most three-phase homes with a compatible array.

How much solar can I store?

The 9.6kWh LiFePO4 pack (50Ah, 192Vdc) covers a typical evening; at 1000W it runs about 9 hours. The 6000-cycle rating supports years of daily use.

How do I add storage later?

Start with one 9.6kWh module and add the optional battery stack to scale. The stackable design keeps commissioning simple.

Is it safe indoors or outdoors?

The IP65 enclosure suits sheltered indoor or outdoor use, AFCI guards against arcs, and cells carry UN38.3, IEC62619, CE, UL1973, UL2054. Avoid charging below 0°C.
