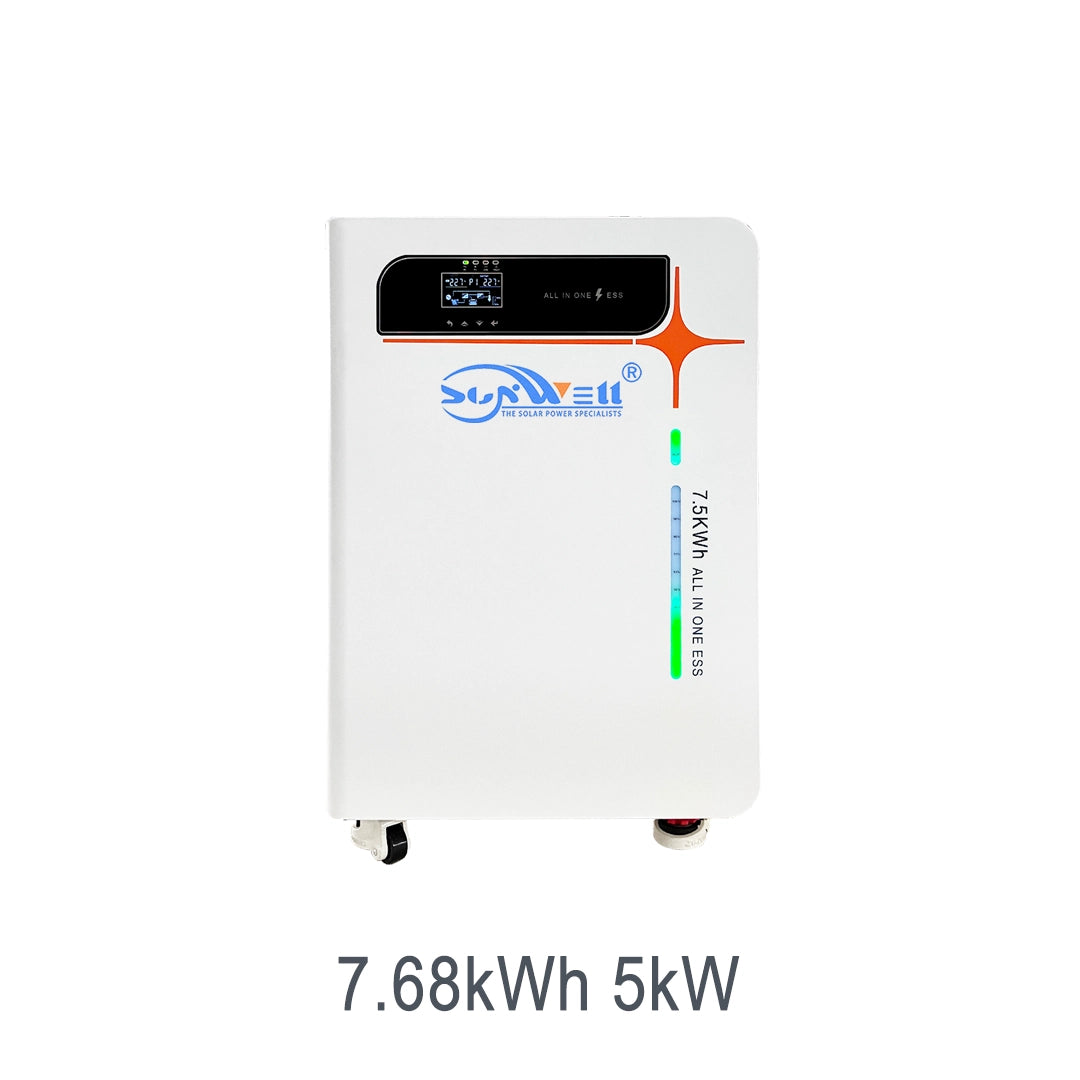

7.68kWh 5kW ARES Mobile All-in-One ESS

7.68kWh 5kW ARES Mobile All-in-One ESS

Get a Quote Contact Us
Model

A five kilowatt seven point six eight kilowatt hour power cart, ARES rolls backup to jobs, camps and outages without a fixed install. Rugged and rollable, the ARES packs a five kilowatt inverter and a seven point six eight kilowatt hour LiFePO4 cell set on a wheeled frame ready for two hundred thirty volt loads anywhere.

View full details
7.68kWh 5kW ARES Mobile All-in-One ESS — Technical Specifications
MODELSW-5KW-7.5KWH-8.5KWH
Inverter
Rated Power5KW
AC Rated Voltage230Vac
Rated Frequency50/60Hz
Efficiency≥98%
Transfer Time10ms
WaveformPure Sine Wave
Battery Overvoltage29.2V
Battery Undervoltage Alarm22.5V
Constant Voltage Charge29.2V
Float Voltage28V
Protection Voltage21.6V
Max. Charging Current200A
Communication InterfaceUSB（Inverter)/RS485（BMS）
AC Input
Nominal Voltage230Vac
Voltage Range90-280Vac
Rated Frequency50Hz
Frequency Range40-70Hz
Rated Current60A
Max. AC Current160A
PV Input
Max. Voltage500V
Optimum Voltage300V-400V
Voltage Range60V-500Vdc
Max. Power27A/9000W
Battery
Rated Capacity7680Wh(300Ah)
Nominal Voltage25.6V
Discharge Voltage Range21.6-29.2V
Standard Charing Current100A
Max. Charging Current200A
Max. Discharging Current200A
Depth of Discharge95%
Communication InterfaceCAN/RS485
Cycle Life≥6000 25°C±2°C, 0.5C, EOL80%
Working Temperature RangeCharge: 0°C-50°C; Discharge: -20°C-60°C
Storage Temperature-20°C-60°C
Dimension45×77×29cm

Features

  • Portable plant A five kilowatt seven point six eight kilowatt hour unit you can wheel to the need. It turns any corner into a small power room in seconds.
  • Instant outlet Plug in and the five kilowatt stage outputs two hundred thirty volt at once. Tools and lights come alive before you have finished uncoiling the cable.
  • Cycle-mobile The seven point six eight kilowatt hour LiFePO4 pack likes being moved and used. Daily transport does not shorten its service life.
  • Shock safe The BMS cushions the five kilowatt system against rough handling. A dropped cart trips protection instead of sparking.
  • Solar or genset Refill the seven point six eight kilowatt hour bank from either source. No sun is no problem when a generator can top it up.
  • Jobsite built A tough shell takes a worksite beating. It stands up to the kind of treatment a fixed unit never sees.

Applications

  • Workshop & tools: Motors, compressors and lights draw a clean two hundred thirty volt sine from the five kilowatt output, starting heavy tools without a hitch.
  • Outdoor event: A stall or stage draws clean power from the cabinet, avoiding a long cable run back to the grid.
  • Market stall: Scales, a card reader and lamps draw from the single cabinet, letting a stall operate far from any outlet.
  • Small business: Tills, routers and lighting stay up on the five kilowatt supply, so a shop keeps trading through a blackout.
  • Whole-home backup: When the mains fails, the five kilowatt stage holds two hundred thirty volt so the home's essentials stay on without a hitch.
  • Off-grid cabin: Off the grid, the seven point six eight kilowatt hour store carries a cabin or kiosk day and night from panels or a genset.

Energy Management & System Architecture

The ARES joins portability with a real five kilowatt sine output and a seven point six eight kilowatt hour LiFePO4 pack, all under a shock-aware BMS. A rugged BMS reads knocks and temperature and feeds the five kilowatt inverter and the seven point six eight kilowatt hour cells, so the cart stays safe in transit and in use.

Plugged in, it turns panel energy into two hundred thirty volt and banks the surplus; unplugged, the five kilowatt stage runs loads straight from the guarded cells. By day it banks PV and replays it after sunset at two hundred thirty volt; during a blackout the five kilowatt stage engages quickly and the BMS keeps each cell within bounds.

Grid, Backup & System Integration

When mains fails the seven point six eight kilowatt hour store carries the site with no switch, the five kilowatt stage holding two hundred thirty volt until power returns. Backup rolls in: wheel the ARES to the load, plug it in, and the five kilowatt inverter moves power from the seven point six eight kilowatt hour battery to two hundred thirty volt the second the cable seats.

A second ARES can later roll up beside it, so the seven point six eight kilowatt hour total grows without fresh wiring or a second controller. One socket to the appliance and one inlet to the panels keep it simple; the BMS supervises topping, drawing and safeguarding even while the cart is moved between sites.

Warranty

We provide a 5-year warranty on the battery and a 2-year warranty on the inverter of this product. If you experience any quality issues within the warranty period, please contact us and we will arrange a replacement or repair promptly.

Frequently Asked Questions

Does it need install?

No. Plug the five kilowatt cart in and the seven point six eight kilowatt hour bank outputs two hundred thirty volt.

Will it save on fuel or grid cost?

Yes. It banks midday solar and discharges through the evening peak off-grid.

What runs in a blackout?

The five kilowatt stage keeps two hundred thirty volt essentials alive for hours.

Indoor safe?

Yes. The BMS isolates faults; keep air moving.
