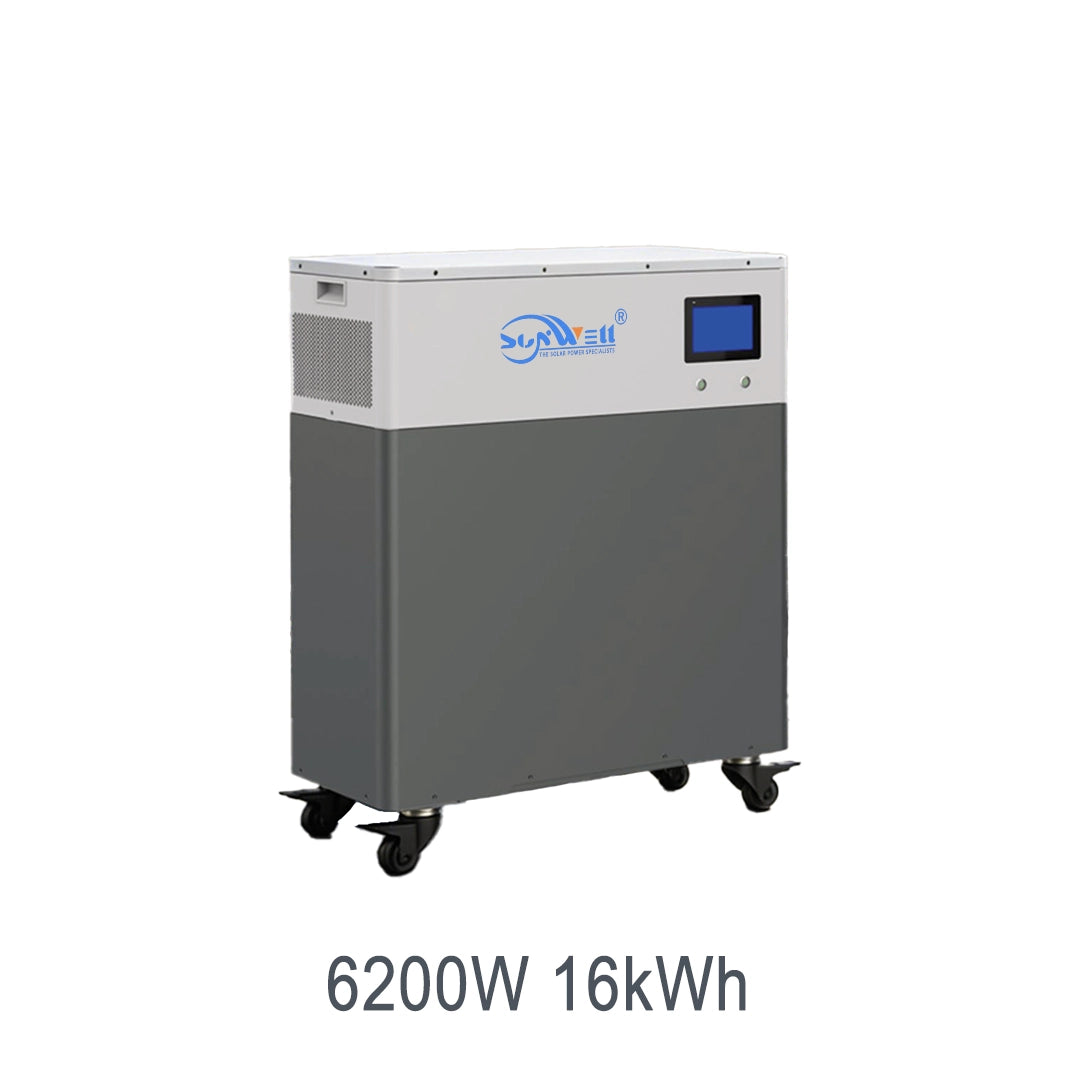

6200W 16kWh All-in-One ESS

6200W 16kWh All-in-One ESS

Get a Quote Contact Us
Model

Built as an all-in-one LiFePO4 system, the 6200W 16kWh All-in-One ESS brings dependable storage to homes and small businesses needing backup and solar self-use. Owners use it to ride through outages and shift solar or grid energy into the evening peak. A sealed, weather-resistant enclosure shrugs off dust and humidity for dependable indoor or sheltered use.

View full details
6200W 16kWh All-in-One ESS — Technical Specifications
MODELSW-MA6K16LV
Rated Power6200VA/6200W
Rated Capacity16kWh
INPUT
Nominal Voltage230Vac(Settable)
Selectable Voltage Range170-280Vac(UPS) / 90-280Vac(Appliances)
Nominal Input Frequency50/60Hz(Auto Sensing)
OUTPUT
Nominal Voltage230Vac(Settable)
Surge Power12400VA
Frequency50/60Hz
Peak Efficiency96%(PV to INV)
Peak Efficiency93%(Battery to INV)
Transfer Time10ms(UPS) / 20ms(Appliances)
WaveformPure Sine Wave
Overload Protection60s@105%~110% Load / 10s@110%~140% Load / 5s@≥140% Load
BATTERY
Battery TypeLiFePO4
Battery Voltage51.2Vdc
Rated Capacity314Ah
Battery Voltage Range40~58.4Vdc
Max. Battery Discharge Current128A
SOLAR CHARGER & AC CHARGER
Solar Charger TypeMPPT
Max. PV Array Power6500W
Max. PV Array Open Circuit Voltage500Vdc
MPPT Operating Voltage Range60~450Vdc
Max. PV Input Current27A
Max. Solar Charge Current120A
Max. AC Charge Current100A
Max. Charge Current(PV+AC)120A
PHYSICAL
Product Dimension (W×D×H)310×700×1100mm
Package Dimension(L×W×H)795×400×1260mm
Net Weight125kg
CommunicationRS232(Inverter)/CAN(BMS)/Bluetooth/WiFi
Lithium Battery ActivationYES(By PV or Utility)
OPERATING ENVIRONMENT
Operating TemperatureCharge: 0°C to 50°C / Discharge: -20°C to 50°C
Storage Temperature0 to 35°C (Storage: 6 months @ SOC 20%-50%) / -15 to 0°C, 35 to 45°C (Storage: 1 month @ SOC 20%-50%)
Humidity10%~85% Relative Humidity(Non-condensing)

Features

  • All-in-one architecture integrates battery, inverter and management. The system combines storage, a hybrid inverter and MPPT in one enclosure, cutting installer time and wiring.
  • Built-in inverter and MPPT handle solar, grid and backup. It harvests PV, powers loads and switches to battery backup within moments of an outage, with no manual action.
  • Intelligent EMS optimizes self-consumption and savings. The system routes power between solar, battery, grid and load in real time, enabling time-of-use scheduling and peak shaving.
  • Real-time monitoring keeps status visible. Through the unit display communication you can check state-of-charge, power flow and faults on site or remotely.
  • Safe LiFePO4 chemistry with multi-layer protection. Inherently stable cells plus system safeguards monitor over-voltage, over-current and temperature during daily operation.
  • Scalable storage expands as demand grows. Add battery modules or parallel units to increase capacity, protecting your initial investment as needs rise.

Applications

  • Whole-Home Backup: Keeps lights, refrigeration, Wi-Fi, and a well pump running through outages as part of a managed essential-load system.
  • Daily Solar Self-Consumption: Stores midday PV in the 16kWh LiFePO4 pack and discharges it in the evening to cut grid purchases.
  • Off-Grid & Remote Homes: Supplies independent power for cabins and outbuildings away from the grid when paired with sufficient PV.
  • Home Office & Sensitive Electronics: Pure-sine-wave 230Vac output protects computers, routers, and medical devices from switching glitches.
  • Peak Load Support: The high surge rating starts motor-driven appliances such as pumps and compressors without tripping.
  • Future Capacity Expansion: Parallel/concurrent operation lets you add cabinets later as household demand rises.

Energy Management & System Architecture

The SW-MA6K16LV manages energy through an integrated architecture that pairs a built-in MPPT solar charger, a pure-sine-wave inverter, and a 51.2Vdc LiFePO4 battery in one cabinet. PV generation feeds the MPPT, which accepts up to 6500W across a 60–450Vdc range and converts it to charge the 314Ah battery or supply the load. A 5-inch color LCD displays live energy flow between PV, battery, grid, and load so users see how power moves in real time.

Battery storage delivers 6200W continuous and 12400VA surge through the inverter/PCS at 96% PV-to-inverter and 93% battery-to-inverter efficiency. Intelligent control handles charging from PV or utility (lithium activation by PV or utility) and load management via selectable input ranges, while RS232, CAN, Bluetooth, and WiFi links report status and support coordinated parallel operation.

Grid, Backup & System Integration

The system works as a grid-connected backup center, delivering 230Vac output with a 10ms(UPS)/20ms(Appliances) transfer that keeps essential loads running through outages. Solar self-consumption is built in: the inverter directs daytime PV to power the home and charge the battery first, managing flow between PV, storage, and load to cut utility draw.

Backup energy comes from the 16kWh LiFePO4 bank, rechargeable from PV or the grid, while the selectable 170–280Vac(UPS)/90–280Vac(Appliances) input rides through unstable supplies. Scalability comes via parallel/concurrent operation, letting multiple cabinets combine for more power and capacity, and RS232/CAN/Bluetooth/WiFi links enable monitoring and home energy-management integration.

Warranty

LiFePO4 batteries for 5 years, hybrid inverters for 2 years, and solar panels under the supplier policy of a 10-year product warranty plus 30-year linear power warranty. If you experience any quality issues within the applicable warranty period, please contact us and we will arrange a replacement or repair promptly.

Frequently Asked Questions

Will the SW-MA6K16LV work with the solar panels I already have?

Yes. The MPPT accepts up to 6500W of PV across a 60–450Vdc range with a 500Vdc open-circuit limit, so most residential arrays connect via MC4. Confirm your string voltage sits inside the MPPT window.

How long can it keep my home running during an outage?

With 16kWh of LiFePO4 and 6200W continuous output, it covers essentials—lighting, fridge, Wi-Fi, a well pump—for many hours by load, and the 12400VA surge starts motor appliances without tripping.

Can I charge it directly from solar without the grid?

Yes. The integrated MPPT charges the battery straight from PV, and lithium activation by PV or utility lets the system self-start and charge even without grid, supporting off-grid and backup use.

Can I add more capacity as my needs grow?

Yes. It supports parallel/concurrent operation, so you can add more all-in-one cabinets to raise both power and energy as your home's demand increases.
