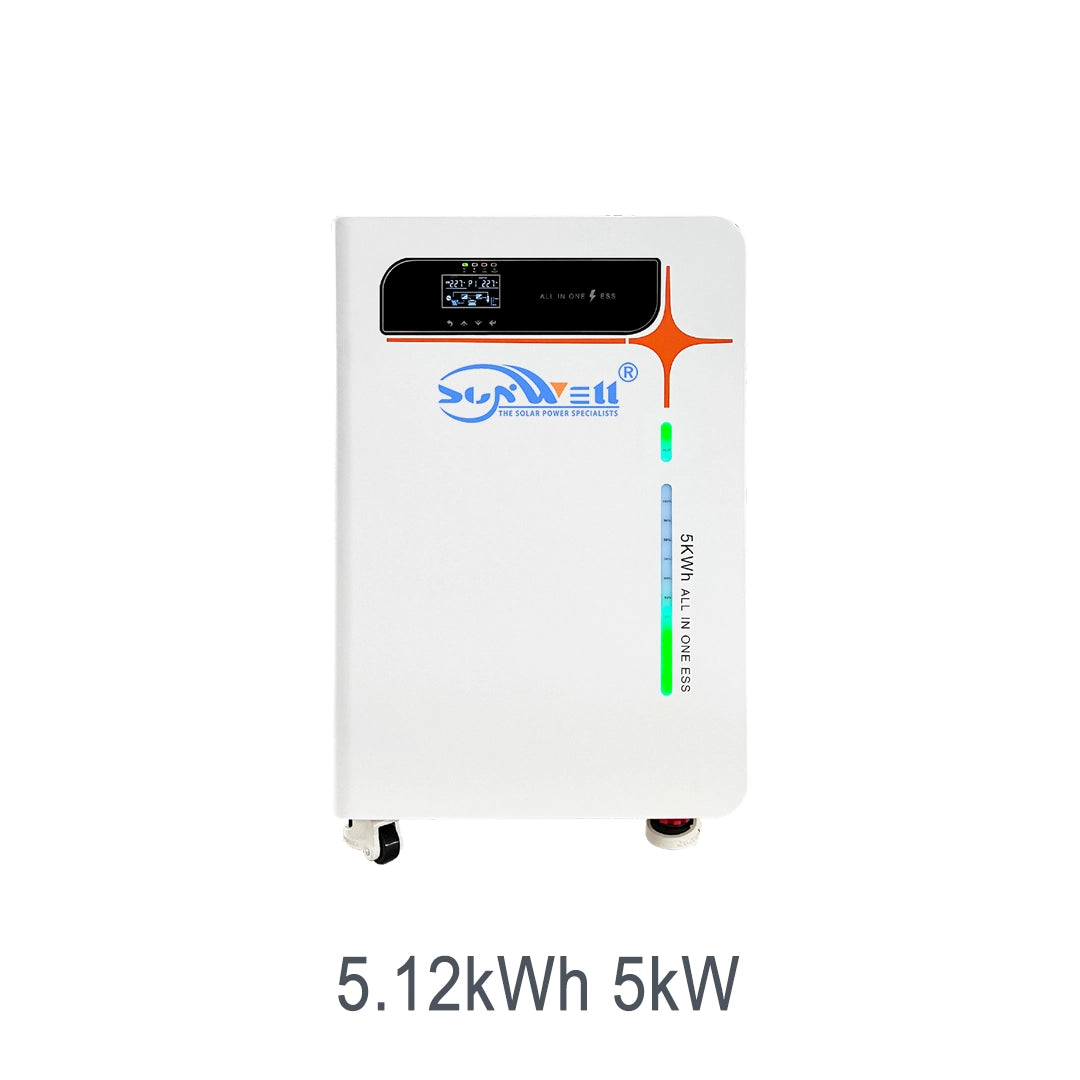

5.12kWh 5kW ARES Mobile All-in-One ESS

5.12kWh 5kW ARES Mobile All-in-One ESS

Get a Quote Contact Us
Model

On wheels, ARES moves five point one two kilowatt hour of storage and five kilowatt of inverter to wherever a site loses power — plug in and the LiFePO4 bank takes over. A five kilowatt five point one two kilowatt hour power cart, ARES rolls backup to jobs, camps and outages without a fixed install.

View full details
5.12kWh 5kW ARES Mobile All-in-One ESS — Technical Specifications
MODELSW-5.5KW-5KWH
Inverter
Rated Power5KW
AC Rated Voltage230Vac
Rated Frequency50/60Hz
Efficiency≥98%
Transfer Time10ms
WaveformPure Sine Wave
Battery Overvoltage29.2V
Battery Undervoltage Alarm22.5V
Constant Voltage Charge29.2V
Float Voltage28V
Protection Voltage21.6V
Max. Charging Current200A
Communication InterfaceUSB（Inverter)/RS485（BMS）
AC Input
Nominal Voltage230Vac
Voltage Range90-280Vac
Rated Frequency50Hz
Frequency Range40-70Hz
Rated Current60A
Max. AC Current160A
PV Input
Max. Voltage500V
Optimum Voltage300V-400V
Voltage Range60V-500Vdc
Max. Power27A/9000W
Battery
Rated Capacity5120Wh(200Ah)
Nominal Voltage25.6V
Discharge Voltage Range21.6-29.2V
Standard Charing Current100A
Max. Charging Current200A
Max. Discharging Current200A
Depth of Discharge95%
Communication InterfaceCAN/RS485
Cycle Life≥6000 25°C±2°C, 0.5C, EOL80%
Working Temperature RangeCharge: 0°C-50°C; Discharge: -20°C-60°C
Storage Temperature-20°C-60°C
Dimension45.2×73×27cm

Features

  • Rolls anywhere The five kilowatt cabinet rides on wheels, taking the five point one two kilowatt hour store from room to site. One person moves it, no forklift, no fixed bracket.
  • Plug-and-play One socket gives two hundred thirty volt from the five kilowatt inverter the moment it is plugged in. There is no commissioning screen to learn.
  • Mobile LiFePO4 The five point one two kilowatt hour pack is built to be moved and cycled often. It shrugs off the knocks that would crack a fixed wall bank.
  • Rugged BMS A BMS shields the five kilowatt system from bumps, heat and short circuit. It locks the cells the instant the cart is unplugged and on the move.
  • Quick charge The input takes panels or a generator to refill the five point one two kilowatt hour bank. A few hours of sun or a genset restores a full evening of runtime.
  • Field tough A sealed cabine shrugs off dust and knocks on a job. Rain stays out and grit stays off the electronics.

Applications

  • Construction site: The rugged enclosure delivers two hundred thirty volt straight to tools and lamps on site, with no trench or permanent connection.
  • Workshop & tools: Motors, compressors and lights draw a clean two hundred thirty volt sine from the five kilowatt output, starting heavy tools without a hitch.
  • Outdoor event: A stall or stage draws clean power from the cabinet, avoiding a long cable run back to the grid.
  • Market stall: Scales, a card reader and lamps draw from the single cabinet, letting a stall operate far from any outlet.
  • Small business: Tills, routers and lighting stay up on the five kilowatt supply, so a shop keeps trading through a blackout.
  • Whole-home backup: When the mains fails, the five kilowatt stage holds two hundred thirty volt so the home's essentials stay on without a hitch.

Energy Management & System Architecture

On its wheels, a five kilowatt inverter and the five point one two kilowatt hour LiFePO4 pack share one BMS that locks the system during transit and frees it the moment it is plugged in. The ARES joins portability with a real five kilowatt sine output and a five point one two kilowatt hour LiFePO4 pack, all under a shock-aware BMS.

Solar or a generator refills the five point one two kilowatt hour bank through one inlet; the BMS protects the cells and the five kilowatt stage at two hundred thirty volt. Plugged in, it turns panel energy into two hundred thirty volt and banks the surplus; unplugged, the five kilowatt stage runs loads straight from the guarded cells.

Grid, Backup & System Integration

Backup rolls in: wheel the ARES to the load, plug it in, and the five kilowatt inverter moves power from the five point one two kilowatt hour battery to two hundred thirty volt the second the cable seats. Transfer is fast and clean, so an outage barely registers for the five kilowatt load drawn from the five point one two kilowatt hour cells at two hundred thirty volt.

Because inverter and battery share a wheeled cabine, the tie to the load is one socket — reserve grows by rolling in another ARES, not rewiring. One socket to the appliance and one inlet to the panels keep it simple; the BMS supervises topping, drawing and safeguarding even while the cart is moved between sites.

Warranty

We provide a 5-year warranty on the battery and a 2-year warranty on the inverter of this product. If you experience any quality issues within the warranty period, please contact us and we will arrange a replacement or repair promptly.

Frequently Asked Questions

Is it really portable?

Yes. The five kilowatt five point one two kilowatt hour cart rolls on wheels and plugs in anywhere.

How long does the five point one two kilowatt hour storage serve me?

It covers essentials for hours and repeats that for years of daily use.

Can I add more later?

Yes. Roll a second five kilowatt ARES up and the BMS lifts the five point one two kilowatt hour total.

Safe indoors?

Yes. The BMS guards over-current, heat and short circuit; ventilate it.
