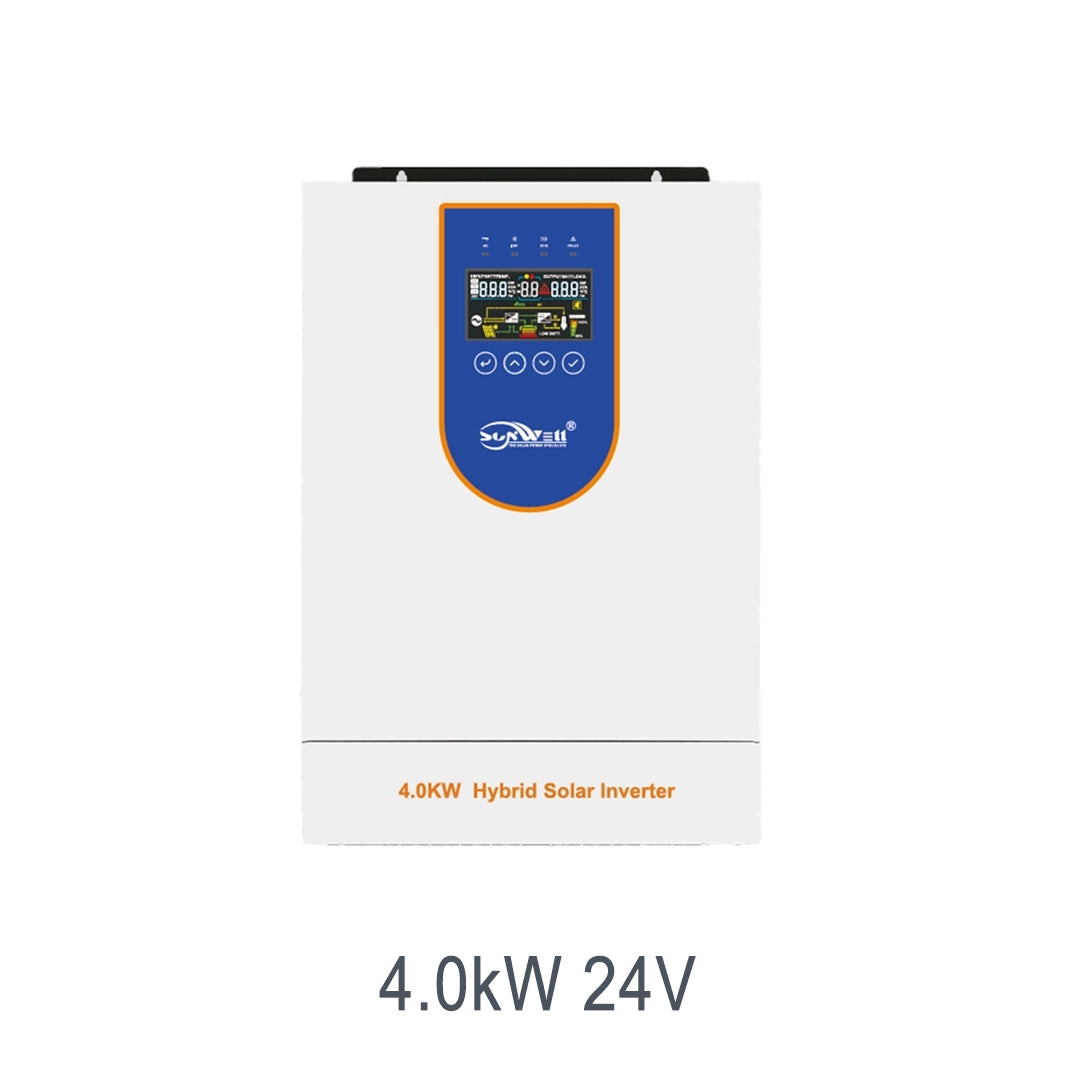

4.0kW 24V Hybrid Solar Inverter

4.0kW 24V Hybrid Solar Inverter

Get a Quote Contact Us
Model

The SW-4.0KW-24V is a 4.0kW hybrid solar inverter for homes that want solar, storage, and grid working together. It charges a 24V battery from panels through a 5kW MPPT stage and delivers clean pure sine wave power, switching to grid or battery backup within milliseconds. It is a practical entry point for daily self-consumption.

View full details
4.0kW 24V Hybrid Solar Inverter — Technical Specifications
MODELSW-SYP4.0KW-24V
AC Input
Rated Input Voltage208Vac / 220Vac / 230Vac / 240Vac, L + N + PE
Voltage Range90~280Vac±3 (normal mode); 170~280Vac±3 (UPS mode)
Frequency (Hz)50Hz / 60Hz (Auto Adaptive)
AC Output
Rated Capacity4.0kW
Surge Power7.2kVA
Voltage208Vac / 220Vac / 230Vac / 240Vac
Power Factor (PF)1
Frequency50Hz / 60Hz (Auto Adaptive)
Switch Time10ms (normal mode); 10ms (UPS mode)
Wave FormPure Sine Wave
Overload Capacity (Battery Mode)65@102%; 110% load; 108@110%~130%load; 3@130%~150% load; 2@150%load
Max. Efficiency (Battery Mode)92.7%@24Vdc
Parallel QuantityNA
Charger (PV / AC)
Solar Charger TypeMPPT
MPPT input current / Input Power18A / 5000W
MPPT Range/Operating Voltage40~450Vdc
Max.PV Open Circuit Voltage500Vdc
Max.PV Charge Current100A
Max.AC Charge Current100A
Max.Charge Current (PV + AC)100A
Battery
Rated Voltage24Vdc
Battery TypeLithium and Lead-acid
Interface
HMILCD
InterfaceRS485 / RS232 / USB
MonitoringWiFi (Optional)
General Data
Ingress ProtectionIP21
Operating Temperature-10°C ~ 60°C
Relative Humidity5% ~ 95% (Non-condensing)
Storage Temperature-15°C ~ 60°C
Net Weight5.7kg
Gross Weight6.3kg
Product Dimension (W×D×H)430×98×288mm
Max.Operating Altitude4000m (Derating above 1000m)

Features

  • Hybrid PV, Battery, and Grid Operation — It coordinates solar input, 24V battery storage, and grid connection so the system can prioritise self-consumption while keeping backup ready.
  • 5kW MPPT Solar Charging — A wide 40-450Vdc MPPT range and 100A charging current let the inverter harvest up to 5kW from the PV array and charge the battery efficiently.
  • Stable Pure Sine Wave Output — Rated at 4.0kW with a 7.2kVA surge, it supplies 208-240Vac pure sine wave power for sensitive home electronics and motors.
  • Fast Backup Transfer — A 10ms switch moves loads between inverter, grid, and battery with minimal interruption, keeping essential appliances running through outages.
  • Flexible 24V Battery Support — Working with both lithium and lead-acid 24V batteries, it adapts to different storage budgets and lifecycle requirements.
  • Communication and Monitoring Ports — RS485, RS232, and USB interfaces plus an optional WiFi HMI support connection to external monitoring equipment.

Applications

  • Residential Solar Systems: Powers daily home loads from solar with battery backup.
  • Home Energy Storage: Stores daytime solar for evening use and outages.
  • Backup Power: Keeps lights and essentials on during grid failures.
  • Small Shops and Offices: Supports productive loads with self-consumption savings.
  • Rural Electrification: Brings reliable AC power to homes beyond the grid.
  • Solar Self-Consumption: Maximises on-site solar use and reduces bills.

Solar Conversion & MPPT Performance

The SW-4.0KW-24V pairs a 5kW MPPT solar stage with a wide 40-450Vdc operating range and a 500Vdc open-circuit limit, letting it accept sizeable panel strings while tracking each one for maximum yield. A 100A charging path moves that energy efficiently into the 24V battery.

On the AC side, the inverter converts stored and direct solar DC into stable 208-240Vac pure sine wave output at up to 4.0kW, with a 7.2kVA surge for motor starts. By prioritising solar and battery before grid draw, it helps households use more of their own generation.

Grid, Battery & System Integration

As a hybrid unit, the inverter blends PV, a 24V battery, and the grid into one coordinated system. It can charge the battery from solar or AC and release stored energy when needed, supporting both self-consumption and backup from a single device.

Communication is handled through RS485, RS232, and USB, with an optional WiFi HMI for local display, while IP21 protection and a -10C to 60C range suit indoor residential and light commercial environments. A 10ms transfer keeps essential loads supplied through outages.

Frequently Asked Questions

Can the 4.0kW hybrid inverter work with my 24V battery?

Yes. It is built for 24V lithium or lead-acid batteries and charges them from solar through a 5kW MPPT stage.

Will it keep my home powered during a blackout?

It switches to battery backup in about 10ms, so essential loads stay on when the grid drops, then returns to normal once power returns.

How many solar panels can I connect?

The MPPT accepts up to 500Vdc open-circuit and 5kW of PV across a 40-450Vdc range, so size your array within those limits.

Can I monitor the inverter remotely?

It has RS485, RS232, and USB ports with an optional WiFi HMI, which can link to external monitoring equipment.
