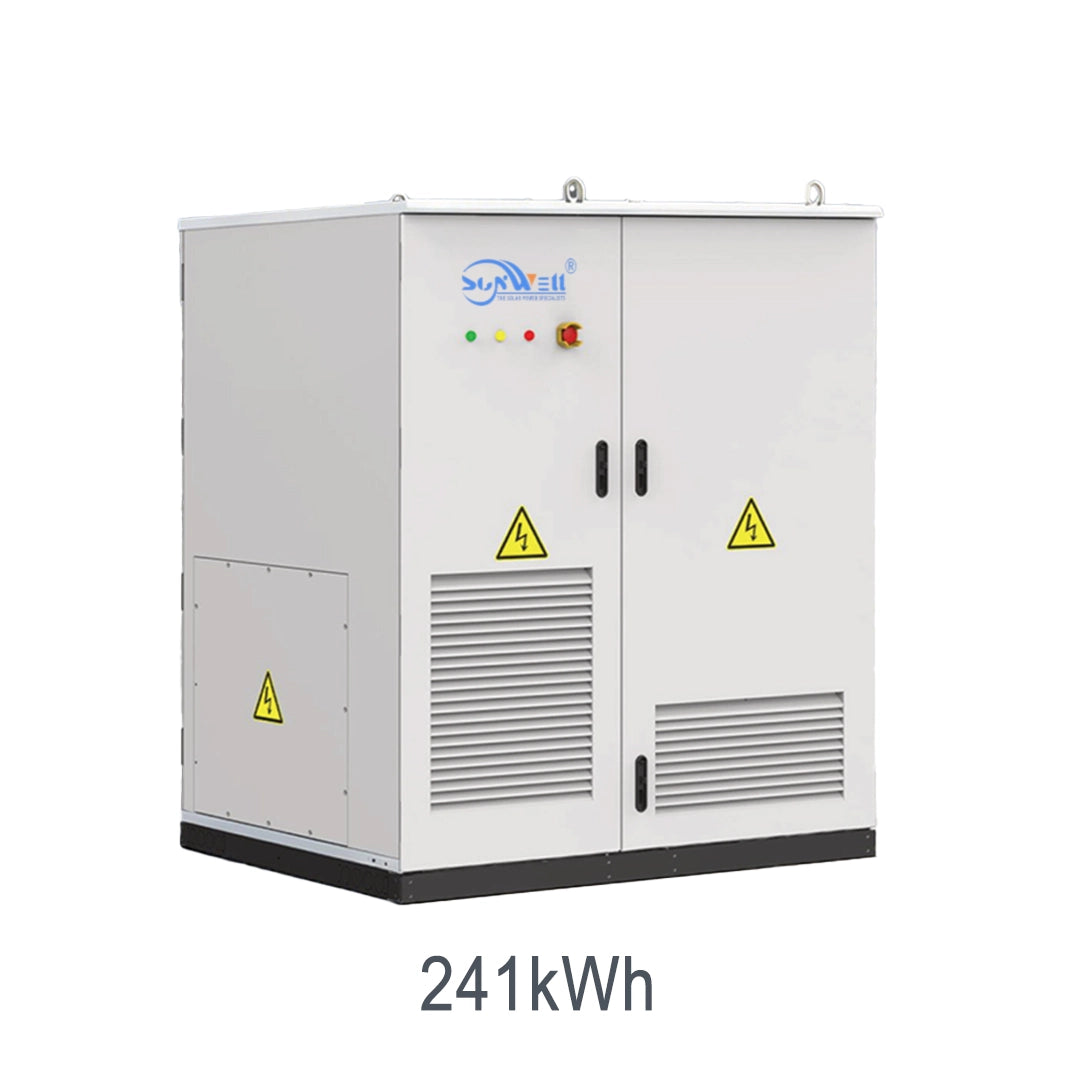

241kWh C&I Liquid-Cooled ESS Cabinet

241kWh C&I Liquid-Cooled ESS Cabinet

Get a Quote Contact Us
Model

The 241kWh C&I Liquid-Cooled ESS Cabinet is a commercial LiFePO4 cabinet for factories, shops and micro-grids. Its cells are rated for 6000 deep cycles, so the pack keeps delivering through years of daily charge and discharge. A sealed, weather-resistant enclosure shrugs off dust and humidity for dependable indoor or sheltered use.

View full details
241kWh C&I Liquid-Cooled ESS Cabinet — Technical Specifications
MODELSW-eBank-241LS
Battery Packs Quantity5
Cell Capacity314Ah
Rated Voltage768V
Voltage Range600~876V
Rated Energy241kWh
Max.Continuous Charging/Discharge Current157A
Max. Charge Current157A
Cycle Life6000 cycles@70%EOL
Max. PV Input Power60kW*2
Rated Input Voltage600Vdc
Max.Input Voltage1000Vdc
MPPT Voltage Range150~950Vdc
PV Input Current45A*8
Rated Power105kW
Max.Input/Output Power116kVA
Overload Capacity1.2Pn,lasting for 1 minute
Max. Efficiency98.5%
Voltage3L/N/PE, 230/400Vac
Frequency50/60Hz
THDI≤3%
Power Factor0.8 leading to 0.8 lagging
Product Dimension(W×D×H)1120×1400×2340mm
Net Weightabout 2350kg
Contact MethodCAN/RS485/WIFI
Design Life10+Years
ScalabilitySupport in parallel
ProtectionIP54
Cooling MethodAir cooling
Operating Temperature-20 to 55°C
Humidity10%~95%RH
Altitude<2000m

Features

  • High-capacity LiFePO4 storage supports commercial duty. The cabinet packs energy for factories, shops and micro-grids, sustaining daily charge and discharge.
  • Liquid cooling holds cells in a tight temperature band. The liquid loop keeps every cell near its optimal temperature, extending life and allowing higher continuous power.
  • Integrated EMS delivers peak shaving and backup. It coordinates PV, battery and load for demand-charge reduction, time-of-use arbitrage and seamless backup transfer.
  • Modular architecture scales with the project. Capacity grows by adding cabinets or racks without replacing core components as the site requirement evolves.
  • Remote monitoring enables proactive operation. Over CAN/RS485 operators track health, energy flow and alerts from a central platform.
  • Multi-level safety protects the installation. Cell, module and system protection safeguard the cabinet for continuous commercial use.

Applications

  • Commercial & Industrial Backup: Keeps production, lighting, and IT equipment running through grid outages.
  • Peak Shaving: Discharges stored energy during high-tariff hours to lower demand charges.
  • Solar Self-Consumption: Absorbs up to 120kW of PV input and releases it when the site needs it.
  • Microgrid & Off-Grid: Forms the storage core of microgrids or sites without reliable grid access.
  • Data Centers & Telecom: Supplies steady three-phase power to critical, always-on facilities.
  • Fleet & EV Depots: Supports charging infrastructure with buffered, dispatchable energy.

Energy Management & System Architecture

The SW-eBank-241LS centers on a 241kWh-class LFP battery built from 314Ah cells in five packs, delivering energy storage at 768V with 157A continuous charge and discharge across a 600–876V window. The inbuilt PCS converts DC battery and PV energy into clean 400V three-phase AC, while the integrated MPPT draws solar through a 150–950Vdc range with up to 120kW of PV input.

An EMS-style control layer coordinates power flow between PV, storage, and load, managing charge and discharge to capture solar and serve site demand. Intelligent control, supported by CAN, RS485, and WIFI communication and reaching up to 98.9% maximum efficiency, lets operators monitor status remotely and balance generation against consumption, so the cabinet charges from the grid or PV and discharges to cover loads as needed.

Grid, Backup & System Integration

The SW-eBank-241LS integrates with a 3L/N/PE 400V grid at 50/60Hz and supports both grid-connected and off-grid operation, with STS and ATS handling transfer to keep essential loads powered during outages. A power factor adjustable from 1 leading to 1 lagging and THDi at or below 3% help the cabinet ride through grid conditions cleanly.

For savings and resilience, the system supports peak-shaving by discharging stored solar during high-tariff periods and can pair with PV or diesel generators through its integrated architecture. Parallel expansion lets operators add cabinets to enlarge both capacity and power, scaling a single 241kWh unit into a larger C&I storage bank as the site grows.

Warranty

LiFePO4 batteries for 5 years, hybrid inverters for 2 years, and solar panels under the supplier policy of a 10-year product warranty plus 30-year linear power warranty. If you experience any quality issues within the applicable warranty period, please contact us and we will arrange a replacement or repair promptly.

Frequently Asked Questions

Can the cabinet connect to my existing 400V three-phase supply?

Yes. The SW-eBank-241LS uses a 3L/N/PE 400V interface at 50/60Hz with THDi at or below 3%, integrating PCS, MPPT, STS, and ATS plus an optional isolation transformer for most commercial grids.

How much energy does it store and what load can it run?

It stores 241kWh from 314Ah LFP cells at 768V and delivers 110kW continuous AC (132kVA peak), enough for lighting, HVAC, and machinery during outages or peak periods.

Can I add more cabinets later?

Yes. The system supports parallel expansion, so you can add cabinets to grow stored energy and power as site demand increases.

How is the battery kept safe and cool?

PACK-level liquid cooling keeps cells stable, while a three-level fire-protection strategy guards against thermal runaway; the IP54 enclosure suits commercial and sheltered outdoor use.
