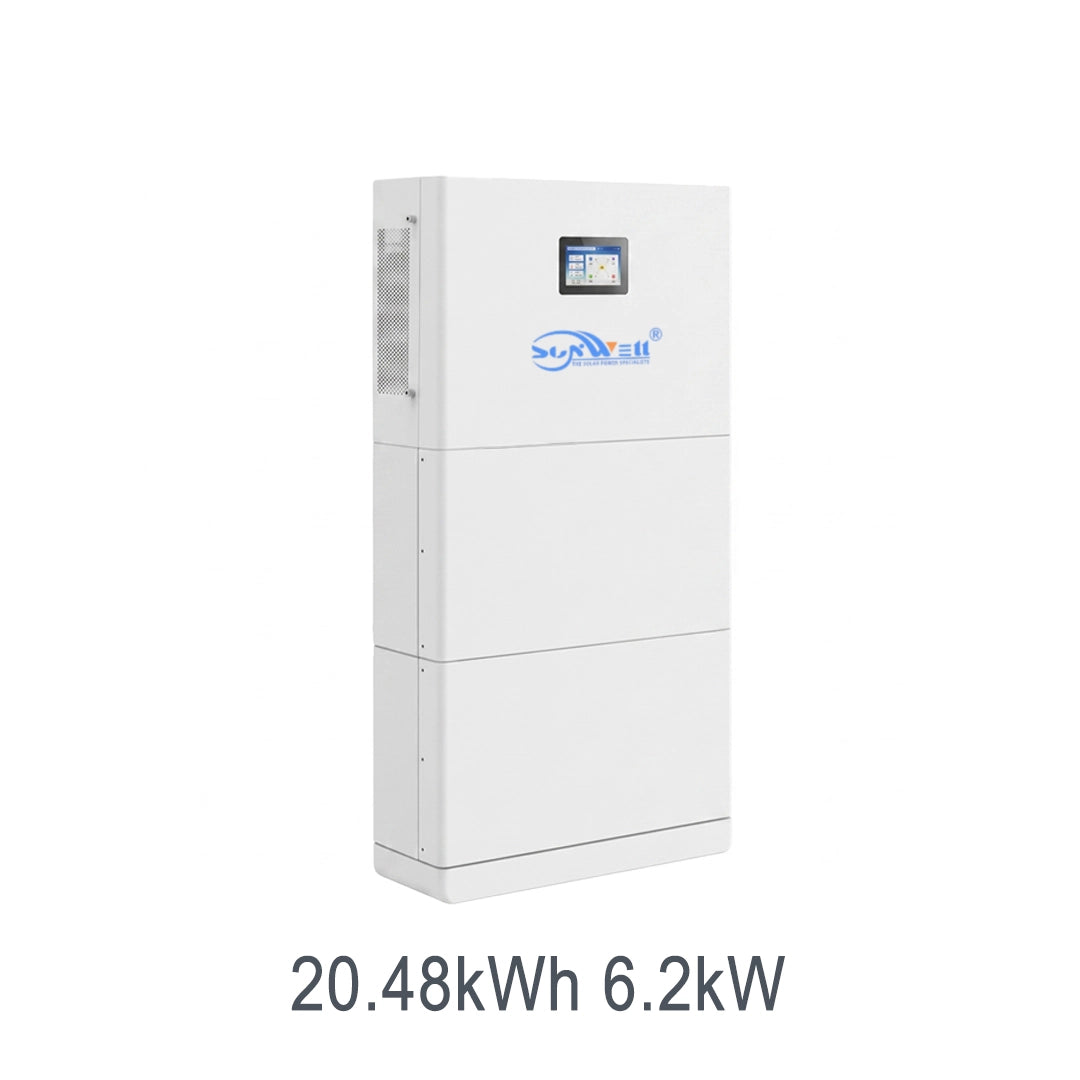

20.48kWh 6.2kW Off-grid All-in-One ESS

20.48kWh 6.2kW Off-grid All-in-One ESS

Get a Quote Contact Us
Model

The 20.48kWh 6.2kW Off-grid All-in-One ESS is an all-in-one LiFePO4 system for homes and small businesses needing backup and solar self-use. Standard communication ports pair it with mainstream inverters for straightforward system integration. Sealed cells hold up through years of repeated cycling with minimal wear.

View full details
20.48kWh 6.2kW Off-grid All-in-One ESS — Technical Specifications
MODELSW-PA6.2k5LV4
Rated Power6200VA/6200W
INPUT
Nominal Voltage230Vac(Settable)
Selectable Voltage Range170-280Vac(UPS) / 90-280Vac(Appliances)
Nominal Input Frequency50/60Hz(Auto Sensing)
OUTPUT
Nominal Voltage230Vac(Settable)
Surge Power12400VA
Frequency50/60Hz(Auto Sensing)
Peak Efficiency 96%(PV to INV)
Peak Efficiency93%(Battery to INV)
Transfer Time10ms(UPS) / 20ms(Appliances)
WaveformPure Sine Wave
Overload Protection60s@105%~110% Load / 10s@110%~140% Load / 5s@≥140% Load
BATTERY
Battery TypeLiFePO4
Battery Voltage51.2Vdc
Combination Method16S1P×4
Rated Capacity100Ah
Energy Storage20.48kWh
Battery Voltage Range42.0~58.4Vdc
SOLAR CHARGER & AC CHARGER
Solar Charger TypeMPPT
Max. PV Array Power6500W
Max. PV Array Open Circuit Voltage500Vdc
MPPT Operating Voltage Range60~450Vdc
Max. PV Input Current27A
Max. Solar Charge Current120A
Max. AC Charge Current100A
PHYSICAL
Product Dimension (W×D×H)Inverters: 190×726×440mm / Battery: 460×760×340mm
Net Weight210kg
Display ConfigurationSegment LCD / Segment LCD+RGB LED / 3.5" Color LCD / 7" Color LCD
CommunicationRS232/RS485(BMS)/Bluetooth/WiFi
Lithium Battery ActivationYES(By PV or Utility)
Parallel CapacityYES(Optional)
Type Of AC Output ConnectionTerminal Block×1 / 10A Universal Socket/13A UK/16A EU/ect. Standard Socket×1
OPERATING ENVIRONMENT
Operating TemperatureCharge: 0°C to 50°C / Discharge: -10 to 50°C
Storage Temperature-20°C to 25°C
Humidity5%~95% Relative Humidity(Non-condensing)

Features

  • All-in-one architecture integrates battery, inverter and management. The system combines storage, a hybrid inverter and MPPT in one enclosure, cutting installer time and wiring.
  • Built-in inverter and MPPT handle solar, grid and backup. It harvests PV, powers loads and switches to battery backup within moments of an outage, with no manual action.
  • Intelligent EMS optimizes self-consumption and savings. The system routes power between solar, battery, grid and load in real time, enabling time-of-use scheduling and peak shaving.
  • Real-time monitoring keeps status visible. Through the unit display communication you can check state-of-charge, power flow and faults on site or remotely.
  • Safe LiFePO4 chemistry with multi-layer protection. Inherently stable cells plus system safeguards monitor over-voltage, over-current and temperature during daily operation.
  • Scalable storage expands as demand grows. Add battery modules or parallel units to increase capacity, protecting your initial investment as needs rise.

Applications

  • Off-Grid Homes: Powers cabins and houses with no reliable grid using PV and stored LiFePO4 energy.
  • Remote Cabins & Farms: Supplies independent 230Vac for lighting, pumps, and appliances away from utilities.
  • Daily Solar Self-Consumption: Stores midday PV and discharges in the evening to extend off-grid autonomy.
  • Backup for Weak-Grid Areas: Kicks in during outages or brownouts with a fast transfer time.
  • Tool-Light Stacked Install: Wireless, stacked design lets one person set up and expand the system.
  • Capacity Expansion: Parallel capacity (optional) and the 5–20kWh model range grow energy as needs rise.

Energy Management & System Architecture

The SW-PA6.2k5LV4 manages energy as an off-grid all-in-one: a built-in 120A MPPT, pure-sine-wave inverter, and 51.2Vdc LiFePO4 battery (100Ah ×4, 16S1P×4) share one stacked, wireless-linked cabinet. PV generation enters the MPPT, which accepts up to 6500W across a 60–500Vdc range and converts it to charge the pack or power the load directly. Integrated control routes power between PV, battery, and load according to demand.

Battery storage delivers 6200W continuous with a 12400VA surge through the inverter/PCS at 96% PV-to-inverter and 93% battery-to-inverter efficiency. Intelligent control manages charging from PV or utility (lithium activation by PV or utility) and load delivery through the terminal block and AC sockets, while RS232, RS485(BMS), Bluetooth, and WiFi links report status and support parallel coordination.

Grid, Backup & System Integration

The system is built for off-grid operation, supplying pure-sine-wave 230Vac with a 10ms(UPS)/20ms(Appliances) transfer that keeps loads running when the grid is absent or fails. Solar self-consumption is central: the MPPT charges the battery from PV first, then the inverter powers the home from stored energy, cutting reliance on generators or utility backup.

Backup energy comes from the 20.48kWh LiFePO4 bank, rechargeable from PV or the grid, while the selectable 170–280Vac(UPS)/90–280Vac(Appliances) input tolerates weak supplies. Scalability is a core trait—the family spans 5kWh to 20kWh and parallel capacity is optional, letting stacked units combine for more energy, with wireless connectivity simplifying installation.

Warranty

LiFePO4 batteries for 5 years, hybrid inverters for 2 years, and solar panels under the supplier policy of a 10-year product warranty plus 30-year linear power warranty. If you experience any quality issues within the applicable warranty period, please contact us and we will arrange a replacement or repair promptly.

Frequently Asked Questions

Will the SW-PA6.2k5LV4 work with the solar panels I already have?

Yes. The MPPT accepts up to 6500W of PV across a 60–500Vdc range (500Vdc open-circuit), so most residential arrays connect via MC4. Keep your string voltage within the MPPT tracking window.

How long can it power my home during an outage?

With 20.48kWh of LiFePO4 and 6200W output, it runs lights, a fridge, Wi-Fi, and small appliances for many hours by load; the 12400VA surge starts motor devices. Actual runtime depends on your daily consumption.

Can it run fully off-grid without the utility?

Yes. It is an off-grid integrated energy storage system that charges from PV or utility and supplies pure-sine-wave 230Vac, so it runs cabins, homes, or outbuildings without grid connection.

Can I add more capacity as my needs grow?

Yes. The family scales from 5kWh toward 20kWh across models, and parallel capacity is optional so you can stack units to add more energy as needs grow.
