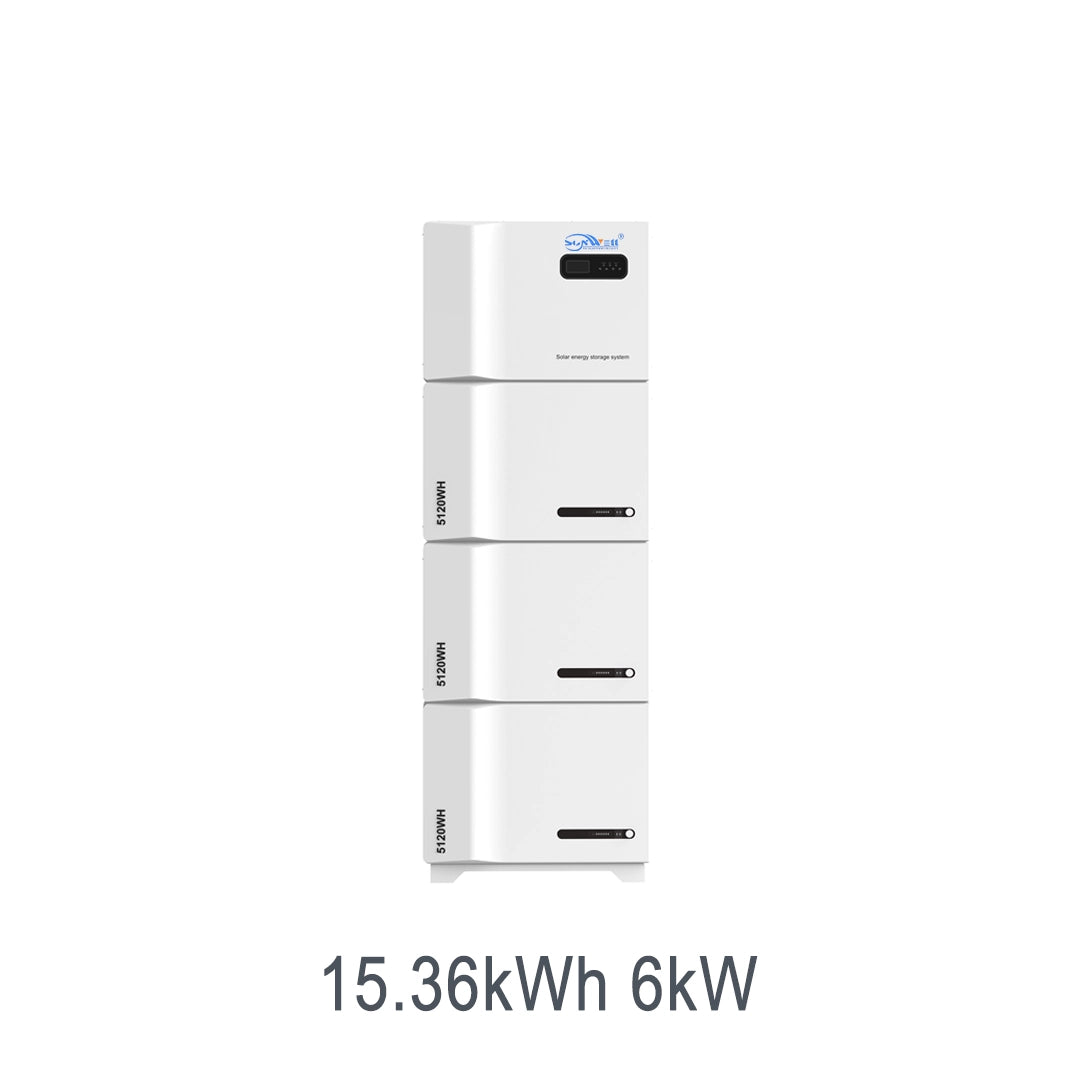

15.36kWh 6kW APOLLO B Stackable All-in-One ESS

15.36kWh 6kW APOLLO B Stackable All-in-One ESS

Get a Quote Contact Us
Model

Built around a self-developed BMS and a six kilowatt inverter, the APOLLO B stores fifteen point three six kilowatt hours and rides a outage on a clean two hundred thirty volt wave. One cabinet holds inverter, charge controller and a fifteen point three six kilowatt hour battery, giving a home six kilowatt backup that switches on the moment the grid drops.

View full details
15.36kWh 6kW APOLLO B Stackable All-in-One ESS — Technical Specifications
MODELSW-B-51.2-300
Inverter
Rated Power6kW
AC Rated Voltage230Vac
Rated Frequency50/60Hz
Efficiency≥98%
Transfer Time10ms
WaveformPure Sine Wave
Battery Overvoltage58.4V
Battery Undervoltage Alarm45V
Constant Voltage Charge58.4V
Float Voltage56V
Max. Charging Current100A
Communication InterfaceUSB（Inverter） / RS485（BMS）
Dimension60×18.3×36.5cm
AC Input
Nominal Voltage230Vac
Voltage Range90-280Vac
Rated Frequency50/60Hz
Frequency Range40-70Hz
Rated Current60A
Max. AC Current100A
PV Input
Max. Voltage500V
Optimum Voltage300-400V
Voltage Range80V-500Vdc
Max. Power27A/9000W
Battery
Rated Capacity15360Wh(300Ah)
Nominal Voltage51.2V
Discharge Voltage Range43.2V-58.4V
Standard Charing Current50A
Max. Charging Current100A
Max. Discharging Current100A
Depth of Discharge95%
Communication InterfaceCAN / RS485
Cycle Life≥6000, 25±2°C, 0.5C, EOL80%
Working Temperature RangeCharge: 0°C-50°C; Discharge: -20°C-60°C
Storage Temperature-20°C-60°C
Dimension60×18.3×39cm

Features

  • Fits the home A six kilowatt unit and fifteen point three six kilowatt hour pack in one narrow cabinet disappears into a corner yet still carries the evening load.
  • Safe output The six kilowatt stage feeds two hundred thirty volt loads with a clean sine; motors start smoothly and LEDs do not buzz.
  • Grow on demand Clip another six kilowatt cabinet to grow the fifteen point three six kilowatt hour store; the link is the same one the first unit already uses.
  • Guardian BMS Over-current and heat are fenced off across the fifteen point three six kilowatt hour cells; a fault trips the bad cell, not the whole home.
  • Long chemistry LiFePO4 gives years of nightly use; it is the chemistry chosen for buses and grids because it simply lasts.
  • One cable in Solar, mains and generator meet at a single port; installers run one line instead of a tangle of feeds.

Applications

  • Peak-period bill cut: It stores cheap midday power and gives it back when prices climb, smoothing the peak-demand charges on the account.
  • Workshop & tools: Power tools and machinery pull a steady two hundred thirty volt wave from the six kilowatt stage, with no flicker on motor start.
  • Small business: Tills, routers and lighting stay up on the six kilowatt supply, so a shop keeps trading through a blackout.
  • Off-grid cabin: Far from the nearest line, the LiFePO4 pack and inverter run a cabin through nightly cycles, fed by panels or a small generator.
  • Annex & outbuilding: A shed, studio or guest wing shares the main bank, so outbuildings stay powered without a separate box.
  • Cold storage: During an outage the fifteen point three six kilowatt hour bank keeps freezers and fridges cold, protecting perishable stock.

Energy Management & System Architecture

A self-developed BMS binds the six kilowatt stage to the fifteen point three six kilowatt hour cells, trimming current and heat so the pack ages slowly. Everything closes inside one cabinet face: the six kilowatt inverter, the charge controller and the fifteen point three six kilowatt hour LiFePO4 bank, all logged by the BMS.

Grid-tied it stores and replays solar; islanded the six kilowatt inverter feeds the essentials while the BMS seals off failing cells on two hundred thirty volt. It loads at noon and discharges after sunset at two hundred thirty volt; in a blackout the six kilowatt stage reclaims the home fast while the BMS nurses each cell.

Grid, Backup & System Integration

The unit rides the grid and falls into island mode on its own, the six kilowatt inverter rebuilding a stable two hundred thirty volt wave from the fifteen point three six kilowatt hour pack. When the mains drops, the fifteen point three six kilowatt hour store carries the home with no manual switch, the six kilowatt stage holding two hundred thirty volt until supply returns.

A generator input is built in: if solar and grid both run short, the inlet takes a genset to recharge while the BMS keeps watch. A second cabinet can later dock beside the first, so the fifteen point three six kilowatt hour reserve doubles without extra wiring or a separate controller.

Warranty

We provide a 5-year warranty on the battery and a 2-year warranty on the inverter of this product. If you experience any quality issues within the warranty period, please contact us and we will arrange a replacement or repair promptly.

Frequently Asked Questions

Is it expandable?

Begin with the fifteen point three six kilowatt hour block and add six kilowatt cabinets as demand rises.

Can it take a generator?

Yes. The one PV inlet also takes a portable genset.

Is the fifteen point three six kilowatt hour pack built for daily use?

It is made for exactly that - nightly charge and discharge.

Indoor safe?

Yes. The BMS fences off faults; mount it where air flows.
