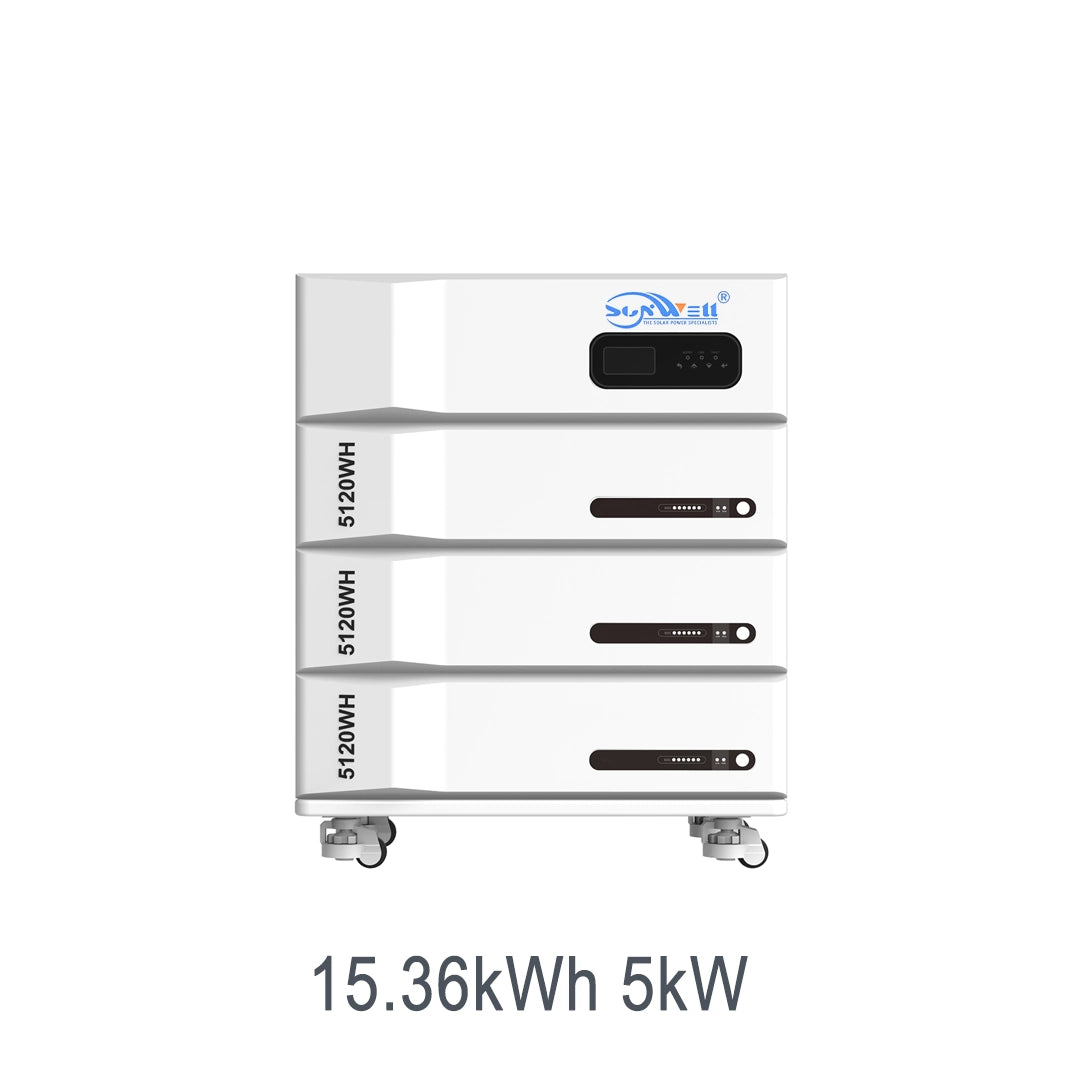

15.36kWh 5kW APOLLO A Stackable All-in-One ESS

15.36kWh 5kW APOLLO A Stackable All-in-One ESS

Get a Quote Contact Us
Model

More than a battery, the five kilowatt APOLLO A is a fifteen point three six kilowatt hour building block that clicks into a row as the load grows. Engineered as a modular backbone, this fifteen point three six kilowatt hour five kilowatt unit lets a household chain several cabinets and treat solar storage like building blocks.

View full details
15.36kWh 5kW APOLLO A Stackable All-in-One ESS — Technical Specifications
MODELSW-A-51.2-300-US
Inverter
Rated Power5KW
AC Rated Voltage110V/230V (Split phase)
Rated Frequency50Hz
Efficiency≥98%
Transfer Time10ms
WaveformPure Sine Wave
Battery Overvoltage58.4V
Battery Undervoltage Alarm45V
Constant Voltage Charge58.4V
Float Voltage56V
Max. Charging Current100A
Communication InterfaceRS232（Inverter) / RS485（BMS）
Dimension60×40.5×18cm
AC Input
Nominal Voltage110Vac
Voltage Range77-135Vac
Rated Frequency50/60Hz
Frequency Range40-70Hz
Rated Current30A
Max. AC Current50A
PV Input
Max. Voltage150V
Optimum Voltage60-105V
Voltage Range60-150V
Max. Power6400W
Battery
Rated Capacity15360Wh(300Ah)
Nominal Voltage51.2V
Discharge Voltage Range43.2V-58.4V
Standard Charing Current50A
Max. Charging Current100A
Max. Discharging Current100A
Depth of Discharge95%
Communication InterfaceCAN/RS485
Cycle Life≥6000, 25±2°C, 0.5C, EOL80%
Working Temperature RangeCharge: 0°C-50°C; Discharge: -20°C-60°C
Storage Temperature-20°C-60°C
Dimension60×40.5×19.5cm

Features

  • Tile-by-tile storage A home starts at fifteen point three six kilowatt hour and stacks five kilowatt tiles upward.
  • Clean sine feed The five kilowatt inverter holds waveform on one hundred ten volt through motor starts.
  • Daily durable The fifteen point three six kilowatt hour LiFePO4 pack shrugs off the nightly cycle.
  • Cell guardian A written BMS watches temperature and current across the fifteen point three six kilowatt hour bank.
  • Flexible fill Solar, mains or generator — whichever is handy tops the unit up.
  • One-box build The floor cabinet keeps the inverter, BMS and fifteen point three six kilowatt hour pack in one sealed enclosure.

Applications

  • Cold storage: Frozen and chilled goods stay safe on battery through a blackout, with the fifteen point three six kilowatt hour pack holding the cold.
  • Security & lighting: Surveillance, gates and yard lights stay on the battery through an outage, holding a site under watch.
  • Community microgrid: Neighbouring homes wire their cabinets into one pool, sharing a single backup bank through the blackout.
  • Water pump: An irrigation or well pump starts and runs on the pure-sine five kilowatt output, drawing from stored solar.
  • Whole-home backup: A blackout barely registers: the five kilowatt inverter hands the load to the fifteen point three six kilowatt hour bank in moments.
  • Evening solar self-use: Rooftop generation is captured by day and released after sunset, so more of the fifteen point three six kilowatt hour store serves the home itself.

Energy Management & System Architecture

No combiner, no rack: the fifteen point three six kilowatt hour five kilowatt APOLLO A is its own module, and linking more just extends the same BMS spine. The stack thinks as one battery because the BMS fuses every five kilowatt cabinet's slice of the fifteen point three six kilowatt hour pack into a common figure.

Self-consumption and backup both run off that one spine at one hundred ten volt; the five kilowatt stage hands over in milliseconds when the grid leaves. Charging is solar-led and grid-backed through one MPPT; the five kilowatt inverter rebuilds one hundred ten volt the instant an outage hits.

Grid, Backup & System Integration

Stacked or single, the response to a grid loss is identical: the five kilowatt stage pulls the fifteen point three six kilowatt hour bank online before a lamp flickers. Off-grid or on, the five kilowatt inverter keeps a clean one hundred ten volt output from the fifteen point three six kilowatt hour LiFePO4 store, and the BMS trips only on a real fault.

One PV inlet and one AC outlet cover the whole arrangement; the BMS scales protection as the stack grows at one hundred ten volt. Scaling is mechanical: drop another five kilowatt cabinet beside the first and the BMS adopts it, extending both capacity and backup runtime at once.

Warranty

We provide a 5-year warranty on the battery and a 2-year warranty on the inverter of this product. If you experience any quality issues within the warranty period, please contact us and we will arrange a replacement or repair promptly.

Frequently Asked Questions

Does stacking change my wiring?

Not at all. The BMS merges each five kilowatt fifteen point three six kilowatt hour block into one bank, so the home keeps a single one hundred ten volt connection.

Can I mix older and newer cabinets?

Yes. The BMS re-balances an enlarged fifteen point three six kilowatt hour stack so older and newer tiles share one state of charge.

What if one tile fails?

The BMS isolates the faulty five kilowatt block and the rest of the fifteen point three six kilowatt hour bank keeps the home on one hundred ten volt.

Is the backup really automatic?

Yes — the five kilowatt stage swaps to battery in milliseconds with no switch to throw.
