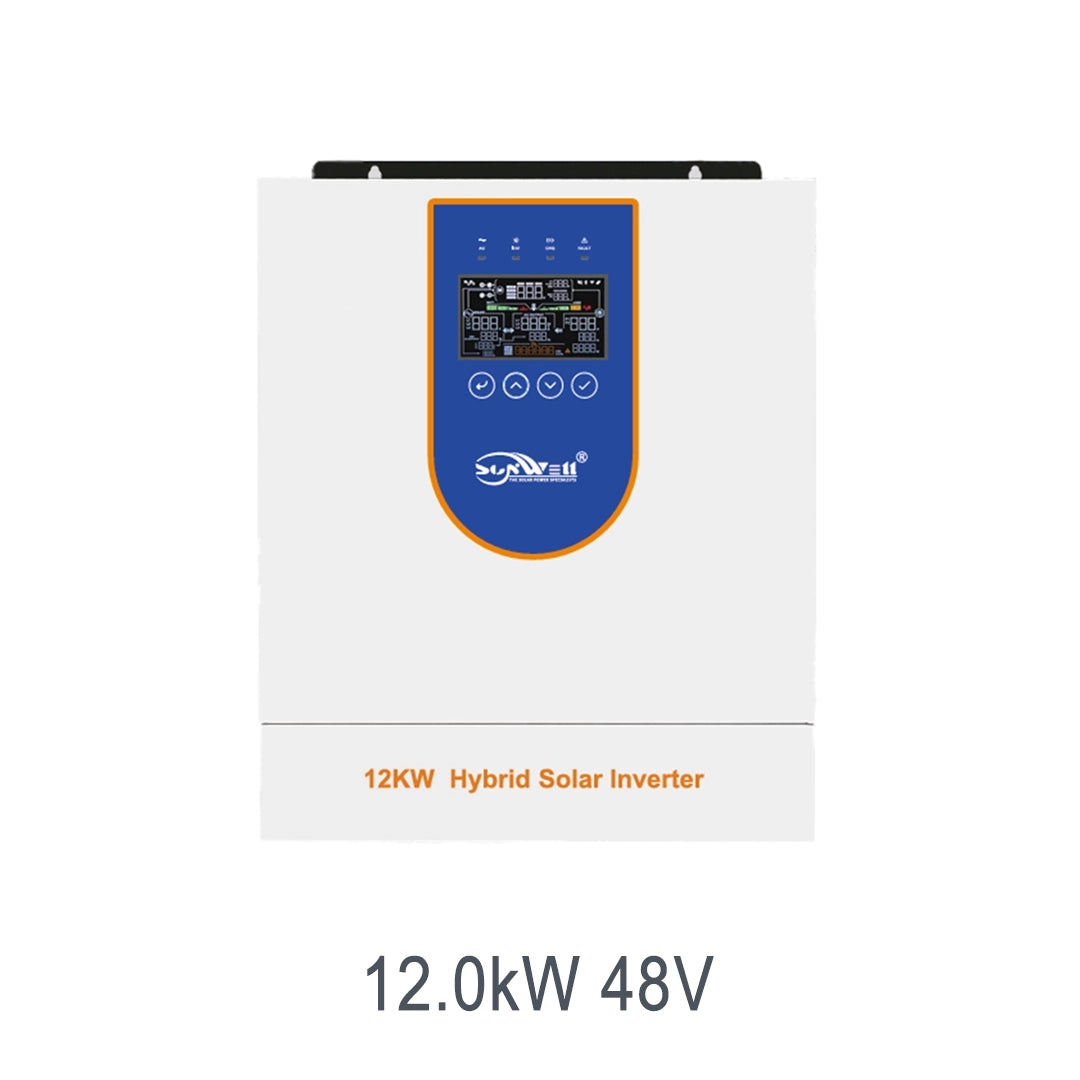

12.0kW 48V Hybrid Solar Inverter

12.0kW 48V Hybrid Solar Inverter

Get a Quote Contact Us
Model

The SW-12.0KW-48V is a 12kW hybrid solar inverter for high-demand homes and small commercial sites running on 48V battery systems. Its dual MPPT stages harvest up to 15kW from the PV array, while the unit delivers 208-240Vac pure sine wave power and switches to battery backup within 10ms. It is the most powerful model in the SW inverter range.

View full details
12.0kW 48V Hybrid Solar Inverter — Technical Specifications
MODELSW-SYP12.0KW-48V
AC Input
Rated Input Voltage220Vac/230Vac/240Vac, L+N+PE
Voltage Range90~280Vac±3 (normal mode); 170~280Vac±3 (UPS mode)
Frequency (Hz)50Hz / 60Hz (Auto Adaptive)
AC Output
Rated Capacity12kW
Surge Power24kVA
Voltage220Vac/230Vac/240Vac
Power Factor (PF)1
Frequency50Hz / 60Hz (Auto Adaptive)
Switch Time10ms (APP/UPS mode); 20ms (GEN mode)
Wave FormPure Sine Wave
Overload Capacity (Battery Mode)1min@102%-125%/load; 10@125%load
Max. Efficiency (Battery Mode)94%@48Vdc
Parallel QuantityNA
Charger (PV / AC)
Solar Charger TypeDual MPPTs
MPPT input current / Input PowerUsing One MPPT: 27A/9KW; Using Two MPPTs: 25A/Per MPPT, 15KW/Total
MPPT Range/Operating Voltage60~450Vdc
Max.PV Open Circuit Voltage500Vdc
Max.PV Charge Current500A
Max.AC Charge Current160A
Max.Charge Current (PV + AC)160A
Battery
Rated Voltage48Vdc
Battery TypeLithium and Lead-acid
Interface
HMILCD
InterfaceRS232 / RS485 / CAN
MonitoringWiFi (Optional)
General Data
Ingress ProtectionIP21
Operating Temperature-10°C~60°C
Relative Humidity5% ~ 95% (Non-condensing)
Storage Temperature-15°C ~ 60°C
Net Weight14kg
Gross Weight16.7kg
Product Dimension (W×D×H)525×138×435mm
Max.Operating Altitude4000m (Derating above 1000m)

Features

  • Dual MPPT for Larger Arrays — Two independent MPPT trackers harvest up to 15kW from separate panel orientations, so east-west or mixed roofs are used more completely.
  • 12kW Pure Sine Wave Output — Rated at 12kW with a 24kVA surge, it powers heavy home and small commercial loads, including motor starts and equipment.
  • 48V High-Capacity Storage — Built for 48V lithium or lead-acid batteries, it supports large storage banks with floating charge at 54Vdc and overcharge protection at 61Vdc.
  • Fast, Flexible Backup — A 10ms transfer covers grid outages, while a 20ms generator mode lets the unit sync smoothly with a backup genset.
  • Hybrid Energy Management — It charges from solar or AC, prioritises self-consumption, and discharges the battery for evening peaks and backup from one device.
  • CAN and Serial Communication — RS232, RS485, and CAN interfaces plus an optional WiFi HMI connect the inverter to monitoring and control systems.

Applications

  • High-Demand Residential: Powers large homes with 48V storage and backup.
  • Small Commercial: Runs shops, offices, and workshops with self-consumption.
  • Home Energy Storage: Shifts large solar yield to evening and backup.
  • Backup Power: Keeps business and home essentials on through outages.
  • Rural and Off-Grid Hybrid: Delivers stable AC where grid is weak, with generator support.
  • Solar Self-Consumption: Maximises on-site generation and cuts grid draw.

Solar Conversion & MPPT Performance

The SW-12.0KW-48V uses dual MPPT trackers to harvest up to 15kW from the PV array, each operating across a 60-450Vdc range with a 500Vdc open-circuit limit. Independent tracking lets two panel groups with different orientations perform at their best.

The inverter converts that solar and battery DC into up to 12kW of 208-240Vac pure sine wave output, with a 24kVA surge for heavy starts. By drawing on solar and stored energy before the grid, it supports high self-consumption even for large loads.

Grid, Battery & System Integration

This hybrid unit coordinates PV, a 48V battery, and grid from one device, charging from solar or AC and discharging stored energy for evening peaks and backup. A generator mode with 20ms sync also lets a genset recharge the battery when needed.

RS232, RS485, and CAN interfaces with an optional WiFi HMI allow connection to monitoring and control systems, while IP21 protection and a -10C to 60C range suit indoor residential and commercial installations. A 10ms transfer sustains essential loads during outages.

Frequently Asked Questions

How much solar can the 12kW inverter handle?

With dual MPPTs it accepts up to 15kW of PV across a 60-450Vdc range, with a 500Vdc open-circuit limit per string.

Can it run heavy appliances and a small business?

Yes. It delivers 12kW continuously with a 24kVA surge, covering large home loads and light commercial equipment.

Does it work with a generator?

It supports generator input with a 20ms sync mode, so a backup genset can recharge the 48V battery when solar is low.

What battery and communication options does it use?

It works with 48V lithium or lead-acid batteries and offers RS232, RS485, CAN, and an optional WiFi HMI for monitoring.
