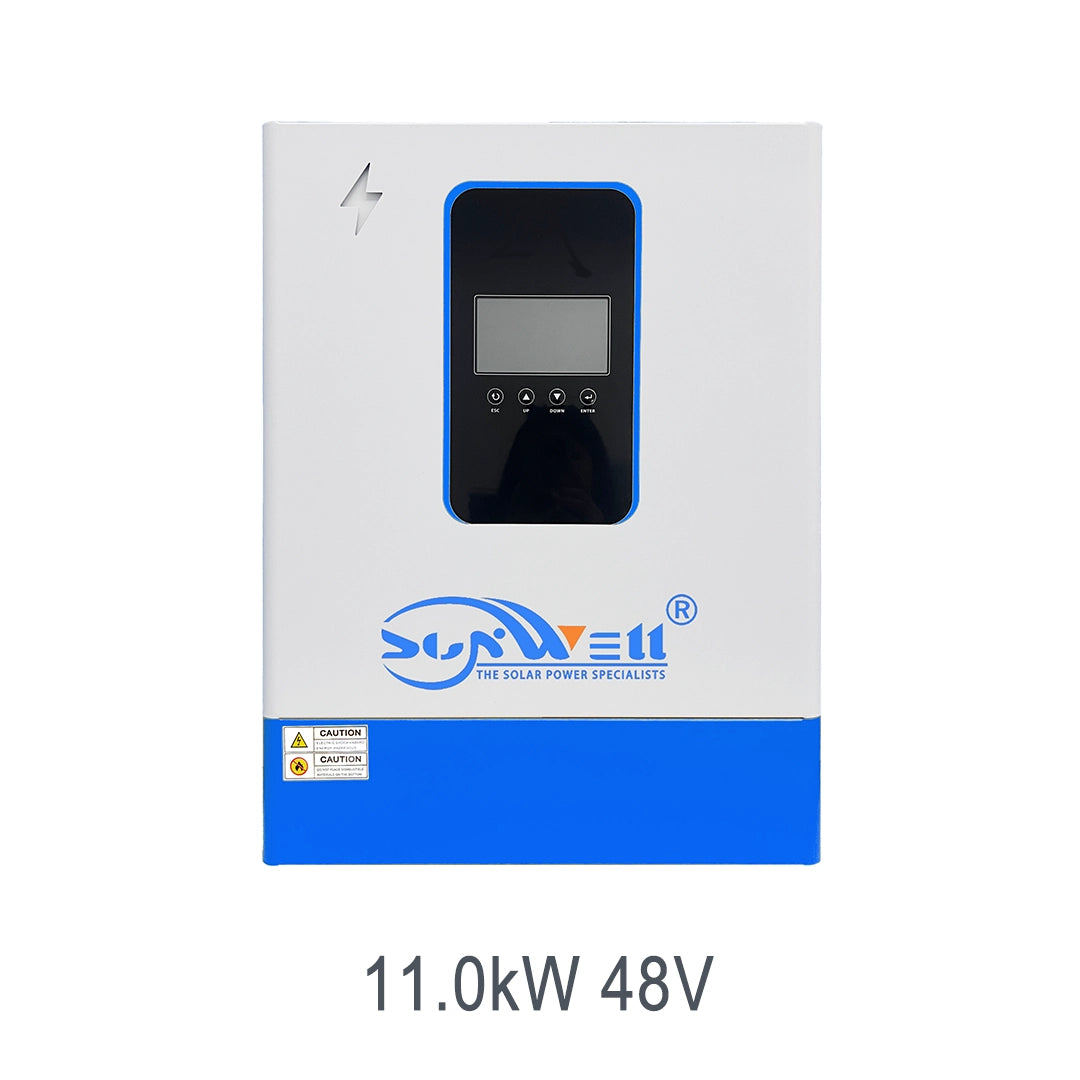

11kW 48V Parallel Hybrid Solar Inverter

11kW 48V Parallel Hybrid Solar Inverter

Get a Quote Contact Us
Model

The SW-M11000T-48PL is an 11kW parallel hybrid solar inverter — built so up to six units run together to scale from a single home to light commercial loads. It pairs dual MPPT solar inputs, 48V battery support, and two separate AC output circuits, coordinating solar, battery, and grid in one device with pure sine wave output and a 10ms backup transfer.

View full details
11kW 48V Parallel Hybrid Solar Inverter — Technical Specifications
MODELSW-M11000T-48PL
Rated Voltage220/230VAC±5%
Surge Power22000VA
Frequency50/60Hz
Output WaveformPure Sine Wave
Transfer Time10ms (computer); 20ms (household)
Overload Protection5s@≥140% load; 10s@110%~140% load
Power Factor0.6~1 (capacitive or inductive)
Battery
Battery Voltage48VDC
Max. Discharge Current220A
Float Charge Voltage54VDC
Overcharge Protection63VDC
Charge ModeCC/CV
PV Charging & AC Charging
Max. PV Open Circuit Voltage500VDC
MPPT Voltage Range60VDC~500VDC
Max. PV Input Current18A×2
Max. PV Charge Current160A
Max. AC Charge Current120A
Max. Charge Current160A
Physical Characteristics
Product Dimension (L×W×H)544.5×414.5×123mm
Package Dimension (L×W×H)637×495×214mm
Net Weight15.8kg
Gross Weight16.9kg
Communication InterfaceRS232/RS485/Dry Contact
Application Environment
Operating Temperature Range-10℃~55℃
Storage Temperature Range-15℃~60℃
Humidity5%~95% RH (non-condensing)
Ingress ProtectionIP21

Features

  • Dual AC Outputs — A main 11kVA/11kW circuit and a 5.5kVA/5.5kW secondary circuit let one inverter serve two load groups separately.
  • Dual MPPT Inputs — Two independent trackers accept up to 5500W each, so panels in different orientations are harvested without compromise.
  • Parallel-Ready Up to Six Units — Capacity can be added as demand grows, with up to six units running together on larger home or business loads.
  • Fast Backup Transfer — A 10ms computer-mode transfer keeps sensitive equipment running when the grid drops.
  • Strong Charging — Built-in MPPT charging reaches 160A from PV and 120A from the grid, recovering the 48Vdc bank quickly.
  • Lithium and Monitoring Ready — RS485 lithium communication, RS232/RS485/dry-contact ports, an LCD, and optional WiFi cover setup and monitoring.

Applications

  • Large residential homes: Carries high-demand household loads from 48V storage with grid backup.
  • Small business and retail: Keeps shops and offices running on solar with automatic backup.
  • Home energy storage: Stores daytime solar for evening use and outage protection.
  • Backup power: Maintains essential circuits during grid failures with a 10ms transfer.
  • Weak-grid and off-grid sites: Supports 48V battery systems where the grid is unstable or absent.
  • Solar self-consumption: Uses on-site generation first to reduce grid reliance.

Solar Conversion & MPPT Performance

The SW-M11000T-48PL runs two independent MPPT trackers, each accepting up to 5500W of PV and 18A of input current, for 11kW total. Working across a 60-500Vdc MPPT window with a 500Vdc open-circuit limit, the trackers keep two differently oriented arrays producing near their own maximum instead of compromising on a shared curve.

That DC energy, together with the 48Vdc battery, is converted into 220/230Vac pure sine wave output at 11kW rated, with a 22000VA surge for motor starts. Peak conversion efficiency reaches 96% from PV to inverter, so more of each harvested kilowatt reaches the load.

Grid, Battery & System Integration

This hybrid inverter coordinates PV, a 48Vdc battery, and the grid in one unit. It charges from solar up to 160A and from the grid up to 120A, floats at 54Vdc, and protects the bank against overcharge at 63Vdc, while RS485 communication supports lithium battery management and activation from either PV or utility supply.

Dual AC outputs can split a critical circuit at 5.5kVA/5.5kW from the full 11kVA/11kW main supply, and up to six units can be paralleled to scale the system. RS232, RS485 and dry-contact ports, an LCD and optional WiFi cover monitoring and control, while IP21 protection and a -10C to 55C operating range suit indoor residential and light commercial rooms.

Frequently Asked Questions

How much solar can this 11kW inverter take?

Two MPPT trackers accept up to 5500W each, 11kW in total, within a 60-500Vdc range and a 500Vdc open-circuit limit.

Can I run two separate load circuits from one inverter?

Yes. It provides an 11kVA/11kW main output and a 5.5kVA/5.5kW secondary output, so critical and normal loads can be split.

Can I add more inverter capacity later?

Yes. Up to six units can be paralleled, so capacity can be expanded as your loads grow.

Does it work with lithium batteries and remote monitoring?

It communicates with lithium batteries over RS485 and offers RS232, RS485, dry-contact ports, and optional WiFi monitoring.
