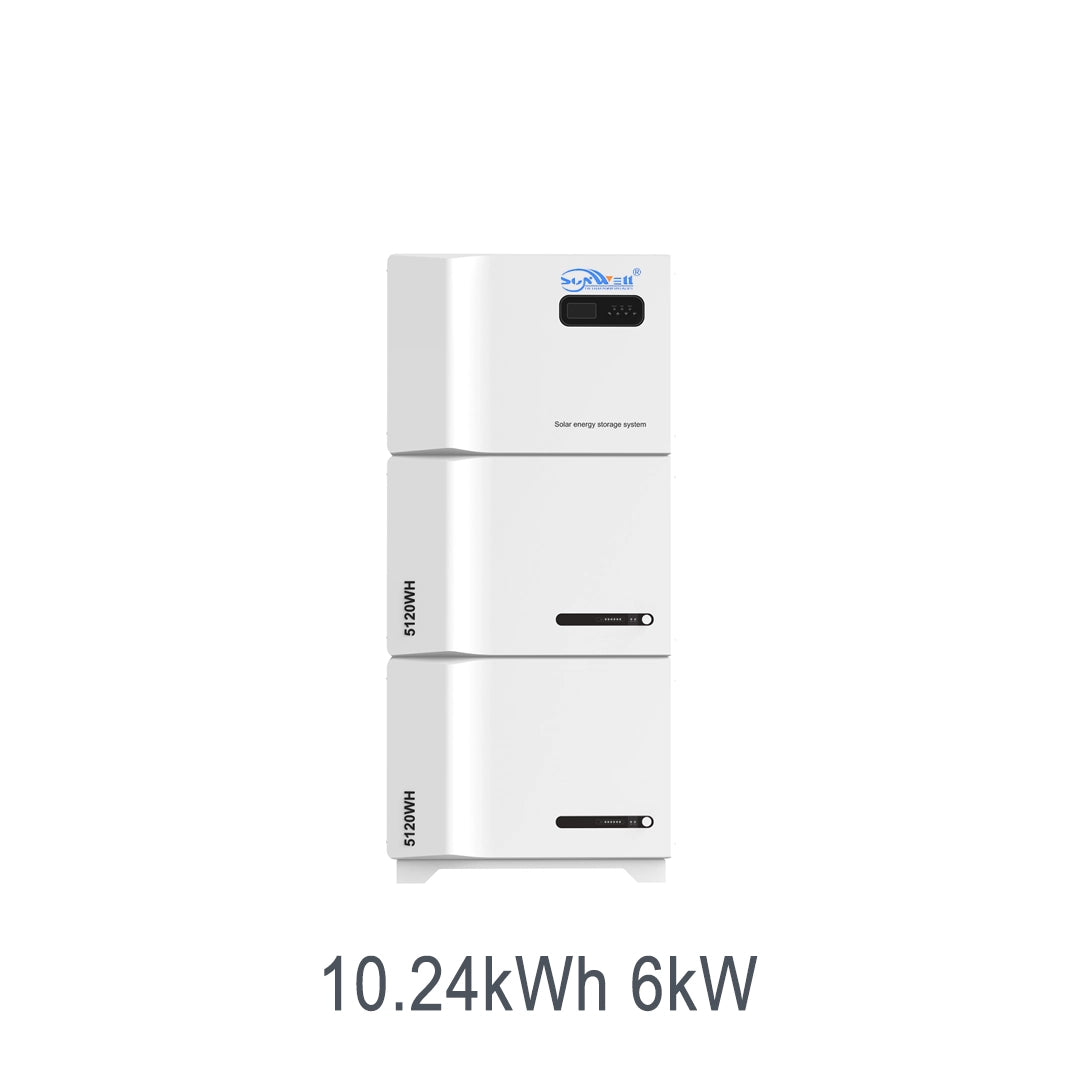

10.24kWh 6kW APOLLO B Stackable All-in-One ESS

10.24kWh 6kW APOLLO B Stackable All-in-One ESS

Get a Quote Contact Us
Model

The APOLLO B pairs a six kilowatt pure-sine inverter with a ten point two four kilowatt hour LiFePO4 pack in a single narrow cabinet, ready to wire straight to the consumer unit. Built around a self-developed BMS and a six kilowatt inverter, the APOLLO B stores ten point two four kilowatt hours and rides a outage on a clean two hundred thirty volt wave.

View full details
10.24kWh 6kW APOLLO B Stackable All-in-One ESS — Technical Specifications
MODELSW-B-51.2-200
Inverter
Rated Power6kW
AC Rated Voltage230Vac
Rated Frequency50/60Hz
Efficiency≥98%
Transfer Time10ms
WaveformPure Sine Wave
Battery Overvoltage58.4V
Battery Undervoltage Alarm45V
Constant Voltage Charge58.4V
Float Voltage56V
Max. Charging Current100A
Communication InterfaceUSB（Inverter） / RS485（BMS）
Dimension60×18.3×36.5cm
AC Input
Nominal Voltage230Vac
Voltage Range90-280Vac
Rated Frequency50/60Hz
Frequency Range40-70Hz
Rated Current60A
Max. AC Current100A
PV Input
Max. Voltage500V
Optimum Voltage300-400V
Voltage Range80V-500Vdc
Max. Power27A/9000W
Battery
Rated Capacity10240Wh(200Ah)
Nominal Voltage51.2V
Discharge Voltage Range43.2V-58.4V
Standard Charing Current50A
Max. Charging Current100A
Max. Discharging Current100A
Depth of Discharge95%
Communication InterfaceCAN / RS485
Cycle Life≥6000, 25±2°C, 0.5C, EOL80%
Working Temperature RangeCharge: 0°C-50°C; Discharge: -20°C-60°C
Storage Temperature-20°C-60°C
Dimension60×18.3×39cm

Features

  • Whole-home ready The ten point two four kilowatt hour store covers a home's essentials from one cabinet; fridge, Wi-Fi and a few lights ride through the average outage without a thought.
  • Clean wave The six kilowatt inverter holds a true sine on two hundred thirty volt for sensitive kit, so laptops and medical devices stay happy, not merely surviving.
  • Stack later Add a second six kilowatt cabinet to lift the ten point two four kilowatt hour total; the BMS fuses the two into one bank, so growth needs no new controller.
  • Cell care The BMS evens the ten point two four kilowatt hour bank so it ages evenly; every cell is nudged toward the same state instead of drifting apart.
  • Cycle ready LiFePO4 shrugs off the daily drain without wear; thousands of shallow cycles pass before capacity noticeably drops.
  • Forgiving inlet Weak grid voltage is absorbed by the MPPT front end; brownouts that stall other kit merely slow the charge here.

Applications

  • Evening solar self-use: Rooftop generation is captured by day and released after sunset, so more of the ten point two four kilowatt hour store serves the home itself.
  • Peak-period bill cut: It stores cheap midday power and gives it back when prices climb, smoothing the peak-demand charges on the account.
  • Workshop & tools: Power tools and machinery pull a steady two hundred thirty volt wave from the six kilowatt stage, with no flicker on motor start.
  • Small business: Tills, routers and lighting stay up on the six kilowatt supply, so a shop keeps trading through a blackout.
  • Off-grid cabin: Far from the nearest line, the LiFePO4 pack and inverter run a cabin through nightly cycles, fed by panels or a small generator.
  • Annex & outbuilding: A shed, studio or guest wing shares the main bank, so outbuildings stay powered without a separate box.

Energy Management & System Architecture

The compact body puts a six kilowatt inverter next to a ten point two four kilowatt hour pack on a single controller loop, eliminating shelf space and separate boxes. A self-developed BMS binds the six kilowatt stage to the ten point two four kilowatt hour cells, trimming current and heat so the pack ages slowly.

It self-consumes midday PV, banks the surplus, and during an outage the BMS holds every cell balanced at two hundred thirty volt through constant cycling. Grid-tied it stores and replays solar; islanded the six kilowatt inverter feeds the essentials while the BMS seals off failing cells on two hundred thirty volt.

Grid, Backup & System Integration

When the mains drops, the ten point two four kilowatt hour store carries the home with no manual switch, the six kilowatt stage holding two hundred thirty volt until supply returns. Backup arrives without a flicker of the lights: the six kilowatt stage shifts the load onto the ten point two four kilowatt hour bank the instant a dip is sensed, so the home stays lit.

A second cabinet can later dock beside the first, so the ten point two four kilowatt hour reserve doubles without extra wiring or a separate controller. A single breaker to the consumer unit keeps the install tidy, yet the BMS still oversees charge, discharge and protection across the two hundred thirty volt system.

Warranty

We provide a 5-year warranty on the battery and a 2-year warranty on the inverter of this product. If you experience any quality issues within the warranty period, please contact us and we will arrange a replacement or repair promptly.

Frequently Asked Questions

Does it need a dedicated room?

No. The ten point two four kilowatt hour pack and six kilowatt inverter live in one compact box.

Will it trim my electricity bill?

Yes. It banks midday solar and releases it through the evening peak.

What stays on during a blackout?

The six kilowatt stage keeps two hundred thirty volt essentials alive for hours.

Safe to live with?

Yes. The BMS isolates faults; allow air to move.
