1.5kW 12V Solar Off-grid Inverter

1.5kW 12V Solar Off-grid Inverter

Get a Quote Contact Us
Model

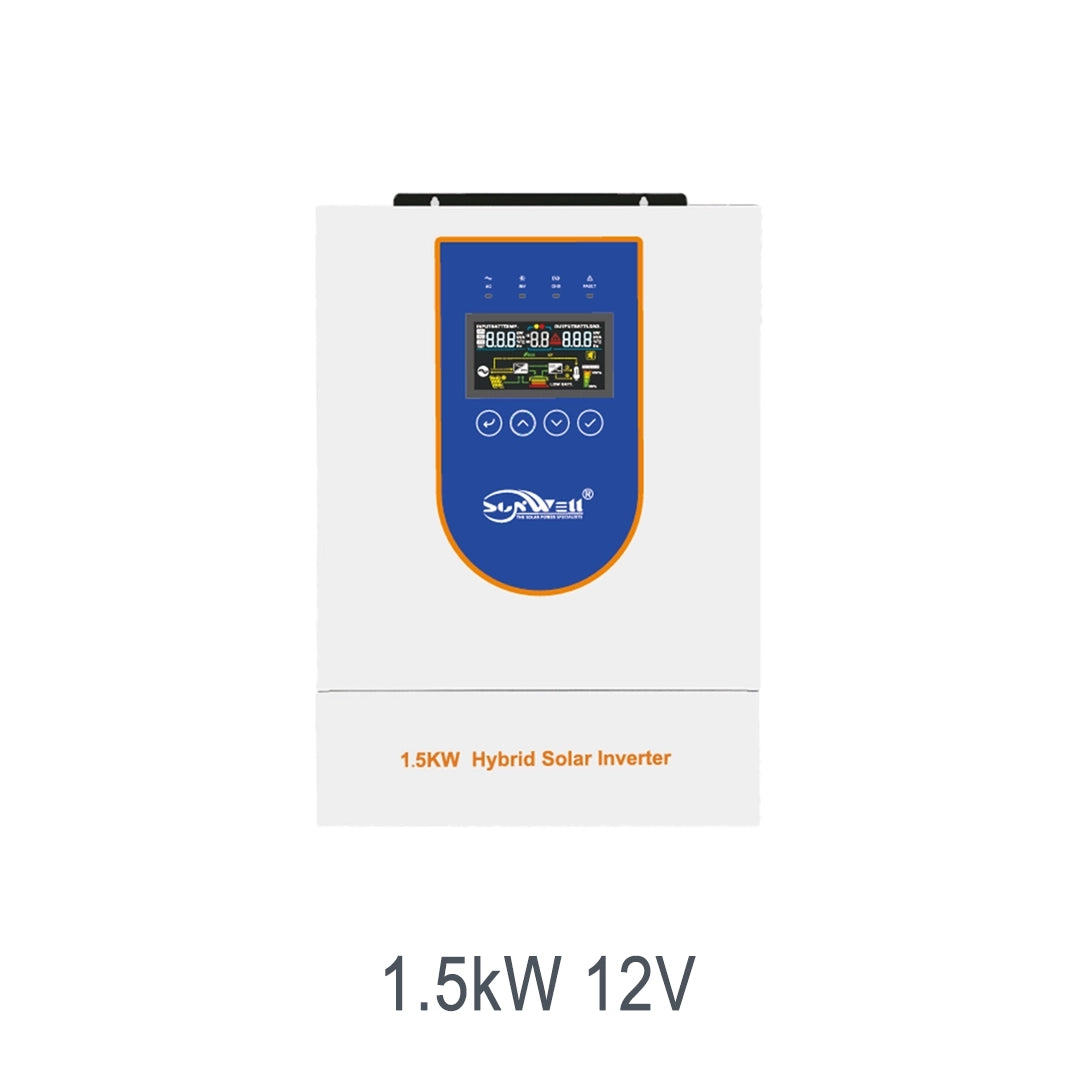

The SW-1.5KW-12V is a 1.5kW off-grid solar inverter for homes and sites without reliable grid access. It delivers clean pure sine wave AC power from solar panels and a 12V battery, and its built-in MPPT charger keeps the battery topped up from the array. Weighing just 3.5kg, it is easy to install in cabins, RVs, and remote setups.

View full details
1.5kW 12V Solar Off-grid Inverter — Technical Specifications
MODELSW-SYP1.5KW-12V
AC Input
Rated Input Voltage208Vac / 220Vac / 230Vac / 240Vac, L + N + PE
Voltage Range90~280Vac±3 (normal mode); 170~280Vac±3 (UPS mode)
Frequency (Hz)50Hz / 60Hz (Auto Adaptive)
AC Output
Rated Capacity1.5kW
Surge Power2.4kVA
Voltage208Vac / 220Vac / 230Vac / 240Vac
Power Factor (PF)1
Frequency50Hz / 60Hz (Auto Adaptive)
Switch Time10ms (normal mode); 10ms(UPS mode)
Wave FormPure Sine Wave
Overload Capacity (Battery Mode)60@102%~110%load; 105@110%~130%load; 3@130%~150%load; 0.2@≥150%load
Max. Efficiency (Battery Mode)90%@12Vdc
Parallel QuantityNA
Charger (PV / AC)
Solar Charger TypeMPPT
MPPT input current / Input Power18A / 800W
MPPT Range/Operating Voltage17~115Vdc
Max.PV Open Circuit Voltage115Vdc
Max.PV Charge Current50A
Max.AC Charge Current50A
Max.Charge Current (PV + AC)100A
Battery
Rated Voltage12Vdc
Battery TypeLithium and Lead-acid
Interface
HMILCD
InterfaceNA
MonitoringNA
General Data
Ingress ProtectionIP21
Operating Temperature-10°C ~ 60 °C
Relative Humidity5% ~ 95% (Non-condensing)
Storage Temperature-15°C ~ 60 °C
Net Weight3.5kg
Gross Weight3.9kg
Product Dimension (W×D×H)320×100×227mm
Max.Operating Altitude4000m (Derating above 1000m)

Features

  • Standalone Off-Grid Power — Operating without grid connection, it turns solar and battery DC into stable AC for remote homes, cabins, and mobile systems.
  • Pure Sine Wave Output — It supplies a clean 208-240Vac pure sine wave that safely runs sensitive electronics and motors without modified-wave noise.
  • Built-In MPPT Solar Charger — A 18A MPPT stage harvests up to 800W from panels across a 17-115Vdc range, tracking the array to capture more sunlight.
  • Flexible 12V Battery Support — The inverter works with both lithium and lead-acid 12V batteries, so users can match chemistry to budget and lifecycle needs.
  • Compact, Lightweight Build — At 320x227x100mm and 3.5kg, it fits tight spaces such as RVs, boats, and small equipment enclosures.
  • Integrated Charger and Protection — A built-in AC charger tops up the battery from grid or generator, while overload, short-circuit, and IP21 protection support safe -10C to 60C operation.

Applications

  • Home Solar Systems: Powers lights, electronics, and small appliances in off-grid houses and cabins.
  • Cabins and Remote Houses: Supplies everyday AC power where utility lines do not reach.
  • RVs and Boats: Compact 3.5kg build fits vehicle and marine battery systems.
  • Solar Street and Monitoring: Runs remote equipment and sensors away from the grid.
  • Telecom and Field Sites: Keeps communication and field devices running on solar and battery.
  • Emergency Backup: Provides standalone power during outages for essential loads.

Solar Input & Power Conversion

The SW-1.5KW-12V centers on efficient solar harvesting through a dedicated MPPT charging stage. Rated for 18A and up to 800W of PV input, it operates across a 17-115Vdc MPPT range with a 115Vdc maximum open-circuit limit, tracking each panel string's operating point to draw the most energy as light conditions change.

On the output side, the inverter converts stored battery and panel DC into a stable 208-240Vac pure sine wave, protecting sensitive loads from distortion. A 10ms transfer and pure sine wave output help connected equipment run smoothly, whether the energy comes from solar, battery, or the built-in AC charger.

Off-Grid Load Management & System Operation

Although built for off-grid use, the inverter integrates closely with a 12V battery bank, supporting both lithium and lead-acid chemistries. This lets the system store solar energy by day and deliver stable AC power at night or during cloudy periods without any grid connection.

A built-in AC charger adds resilience by topping up the battery from a grid socket or generator when solar is insufficient. Combined with overload, short-circuit, and IP21 enclosure protection and a -10C to 60C operating range, the unit maintains safe, continuous operation in demanding environments.

Frequently Asked Questions

Can this 1.5kW off-grid inverter run my appliances without grid power?

Yes. It is designed for off-grid use, converting solar panel and 12V battery DC into 208-240Vac pure sine wave power for lights, electronics, and small appliances where no utility connection exists.

What battery can I use with the SW-1.5KW-12V?

It supports both 12V lithium and lead-acid batteries, giving you flexibility between lower upfront cost and longer cycle life.

How do I charge the battery if there is no sun?

The inverter has a built-in AC charger that replenishes the battery from a grid outlet or generator, so you are not dependent on solar alone.

Can I connect two of these in parallel for more power?

No. This model is not designed for parallel operation, so capacity cannot be expanded by linking units; choose a higher-power model for larger loads.
